SKU: ESPE211-SNR

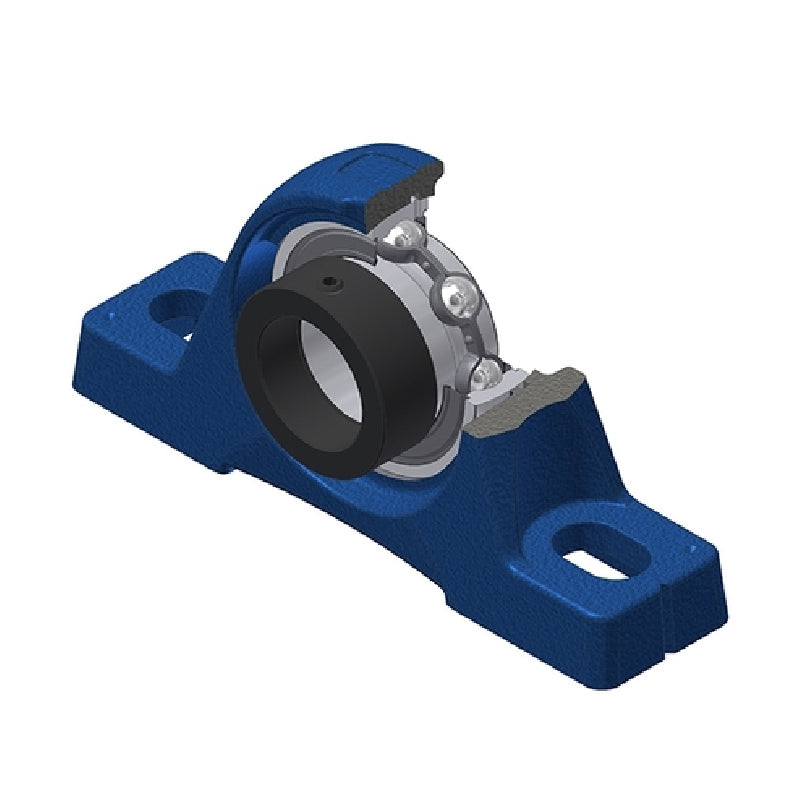

SNR ESPE211 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 55mm Eccentric Collar Insert - Allow 2-3 Days
- Regular price
- €59.95 ex VAT
- Sale price
- €59,95
- Regular price
-
Not in stock
Quantity Price Breaks
3
€53.36
4
€50.36
9
€49.76
19
€49.16
49
€48.56
99
€47.96
499
€44.96
999
€44.36
1999
€43.76
2999
€43.16
4999
€41.97
SKU:
ESPE211-SNR
SNR ESPE211 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 55mm Eccentric Collar Insert - Allow 2-3 Days
- Regular price
- €59.95 ex VAT
- Sale price
- €59,95
- Regular price
-
Description
ESPE200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter | = | 55mm |
| A | = | 60mm |
| A1 | = | 35mm |
| B | = | 32.5mm |
| d1 | = | 74.5mm |
| H | = | 63.5mm |
| H1 | = | 22.5mm |
| H2 | = | 124.5mm |
| J | = | 176mm |
| L | = | 222mm |
| L1 | = | 68mm |
| N | = | 18mm |
| N1 | = | 30mm |
| S | = | 12mm |
| G | = | R1/8& |
| quot | = | |
| --- | = | Load rating |
| Dynamic load C | = | 43.55 kN |
| Static load C0 | = | 29.2 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 22 Nm |
| Mass | = | 3.17 kg |
