SKU: ESPE212-SNR

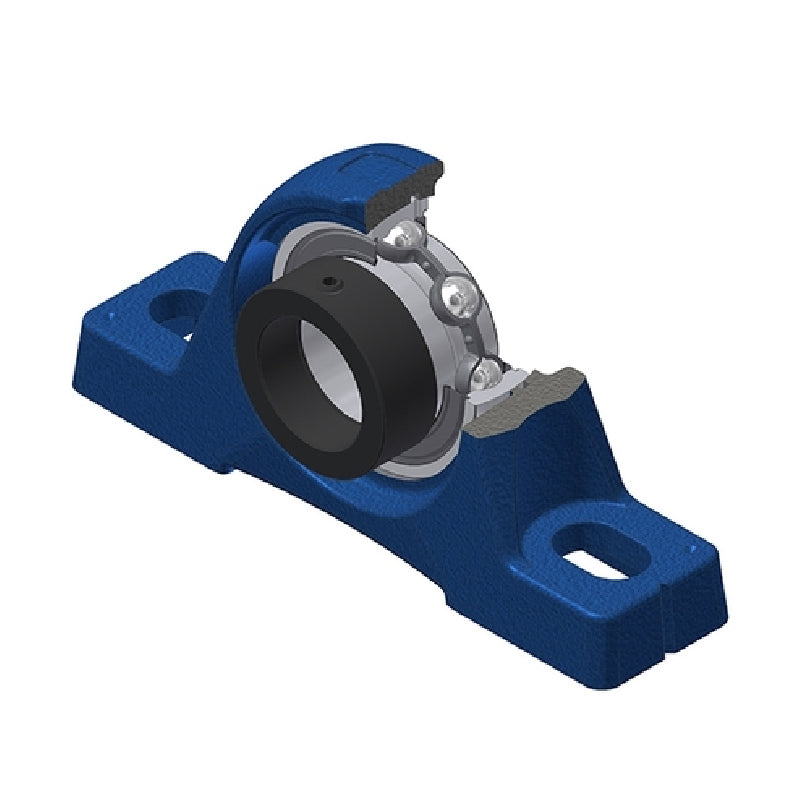

SNR ESPE212 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 60mm Eccentric Collar Insert - Allow 2-3 Days
- Regular price
- €73.93 ex VAT
- Sale price
- €73,93
- Regular price
-
Not in stock
Quantity Price Breaks
3
€65.80
4
€62.10
9
€61.36
19
€60.62
49
€59.88
99
€59.14
499
€55.45
999
€54.71
1999
€53.97
2999
€53.23
4999
€51.75
SKU:
ESPE212-SNR
SNR ESPE212 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 60mm Eccentric Collar Insert - Allow 2-3 Days
- Regular price
- €73.93 ex VAT
- Sale price
- €73,93
- Regular price
-
Description
ESPE200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter | = | 60mm |
| A | = | 60mm |
| A1 | = | 42mm |
| B | = | 33.4mm |
| d1 | = | 82mm |
| H | = | 69.9mm |
| H1 | = | 25mm |
| H2 | = | 140mm |
| J | = | 190mm |
| L | = | 240mm |
| L1 | = | 71mm |
| N | = | 18mm |
| N1 | = | 28mm |
| S | = | 12mm |
| G | = | R1/8& |
| quot | = | |
| --- | = | Load rating |
| Dynamic load C | = | 52.5 kN |
| Static load C0 | = | 32.8 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 22 Nm |
| Mass | = | 4.5 kg |
