SKU: ESPFL202-SNR

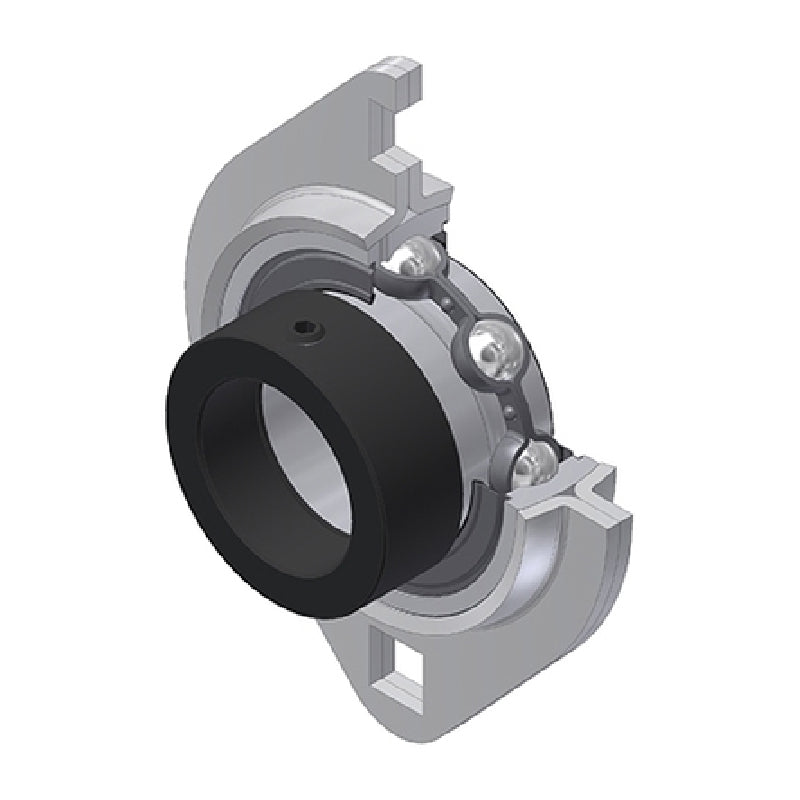

SNR ESPFL202 Metric Two Bolt Oval Pressed Steel Bearing Housing with 15mm Eccentric Collar Insert - Allow 2-3 Days
- Regular price
- €19.50 ex VAT
- Sale price
- €19,50
- Regular price
-
Quantity Price Breaks
SNR ESPFL202 Metric Two Bolt Oval Pressed Steel Bearing Housing with 15mm Eccentric Collar Insert - Allow 2-3 Days
- Regular price
- €19.50 ex VAT
- Sale price
- €19,50
- Regular price
-
Description
|
2 Bolt Oval Pressed Steel Bearing Housings: Of galvanized steel construction these housings are a simple economical housed bearing solution. Designed for light to medium duty applications they can be bolted to sheet metal frameworks or even timber if required. The supplied sealed bearing insert has grub screws for securing to the shaft. Once assembled the bearing remains rigid in the housing. The inserts are also available separately. |
Technical
| --- | = | Dimensions |
| Shaft diameter d | = | 15mm |
| A | = | 6.7mm |
| A1 | = | 4mm |
| A2 | = | 22.1mm |
| B | = | 19.1mm |
| B1 | = | 28.6mm |
| d1 | = | 27.2mm |
| H | = | 81mm |
| J | = | 63.5mm |
| L | = | 58.7mm |
| N | = | 7.1mm |
| S | = | 6.5mm |
| --- | = | Load rating |
| Dynamic load C | = | 9.55 kN |
| Static load C0 | = | 4.78 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 5.5 Nm |
| Mass | = | 0.21 kg |
