SKU: ESPFT205-SNR

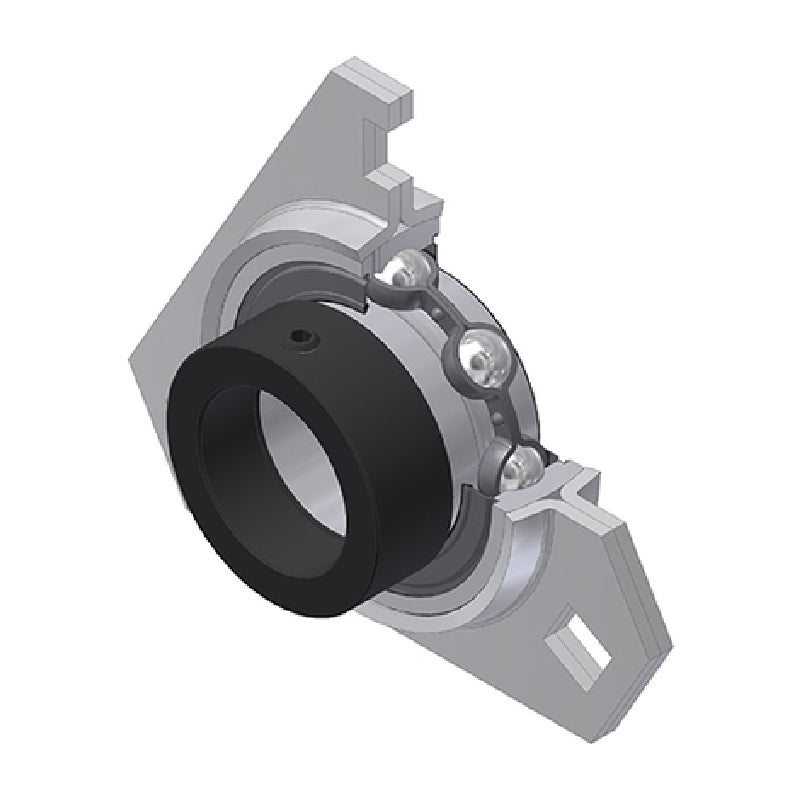

SNR ESPFT205 Metric Pressed Steel 3 Bolt Triangle Flange Housing with 25mm Bore Eccentric Collar Insert - Allow 2-3 Days
- Regular price
- €22.28 ex VAT
- Sale price
- €22,28
- Regular price
-
Not in stock
Quantity Price Breaks
3
€19.83
4
€18.72
9
€18.49
19
€18.27
49
€18.05
99
€17.82
499
€16.71
999
€16.49
1999
€16.26
2999
€16.04
4999
€15.60
SKU:
ESPFT205-SNR
SNR ESPFT205 Metric Pressed Steel 3 Bolt Triangle Flange Housing with 25mm Bore Eccentric Collar Insert - Allow 2-3 Days
- Regular price
- €22.28 ex VAT
- Sale price
- €22,28
- Regular price
-
Description
|
ESPFT200 Series 3 Bolt Pressed Steel Triangular Housings: Of galvanized steel construction these housings are a simple economical housed bearing solution. Designed for light to medium-duty applications they can be bolted to sheet metal frameworks or even timber if required. The supplied sealed bearing insert has grub screws for securing the shaft. Once assembled the bearing remains rigid in the housing. The inserts are also available separately. Benefits: Cost-effective bearing/housing assembly, replaceable insert, grub screw fixing |
Technical
| --- | = | Dimensions |
| Shaft diameter d | = | 25mm |
| A | = | 8.7mm |
| A1 | = | 4mm |
| A2 | = | 23.4mm |
| B | = | 21.4mm |
| B1 | = | 30.9mm |
| d1 | = | 37.4mm |
| H | = | 95.2mm |
| H1 | = | 34.2mm |
| J | = | 76mm |
| N | = | 8.7mm |
| S | = | 7.5mm |
| --- | = | Load rating |
| Dynamic load C | = | 14 kN |
| Static load C0 | = | 7.88 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 5.5 Nm |
| Mass | = | 0.32 kg |
