SKU: ESPG207-SNR
SNR ESPG207 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with Eccentric Collar Insert 35mm Bore - Allow 2-3 Days
- Regular price
- €39.12 ex VAT
- Sale price
- €39,12
- Regular price
-
Not in stock
Quantity Price Breaks
3
€34.82
4
€32.86
9
€32.47
19
€32.08
49
€31.69
99
€31.30
499
€29.34
999
€28.95
1999
€28.56
2999
€28.17
4999
€27.38
SKU:
ESPG207-SNR
SNR ESPG207 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with Eccentric Collar Insert 35mm Bore - Allow 2-3 Days
- Regular price
- €39.12 ex VAT
- Sale price
- €39,12
- Regular price
-
Description
|

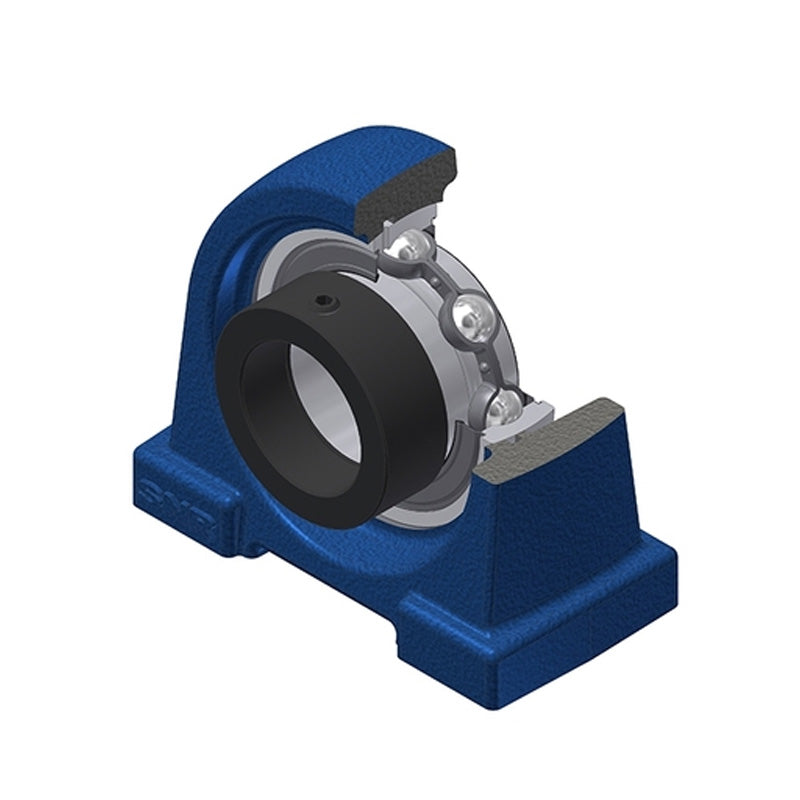

ESPG200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
Technical

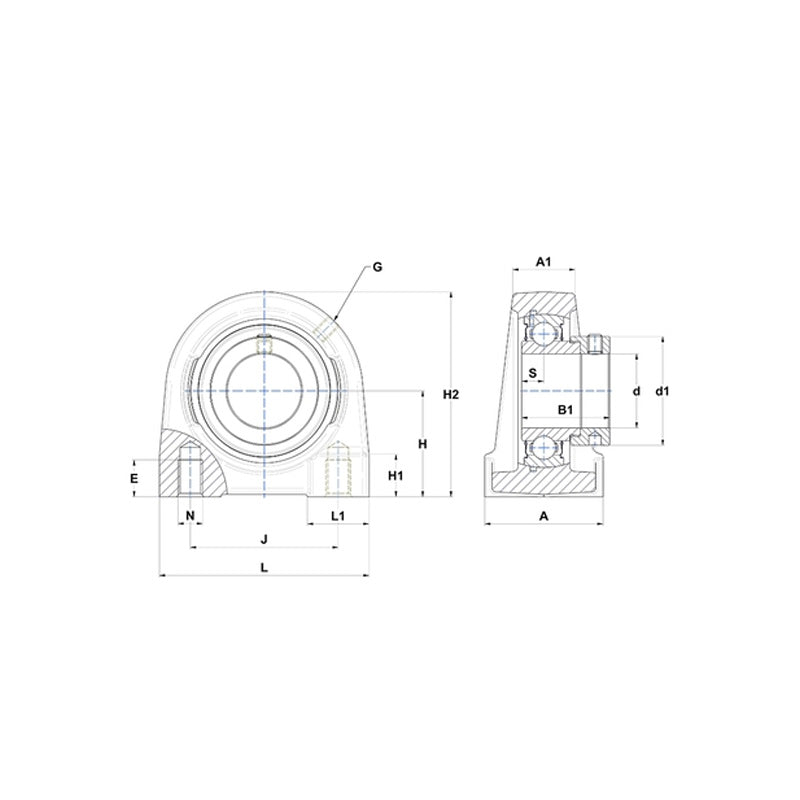

| --- | = | Dimensions |
| Shaft diameter | = | 35mm |
| A | = | 48mm |
| A1 | = | 27mm |
| B | = | 25.4mm |
| d1 | = | 51.1mm |
| E | = | 22mm |
| H | = | 47.6mm |
| H1 | = | 20mm |
| H2 | = | 93mm |
| J | = | 68mm |
| L | = | 100mm |
| L1 | = | 35mm |
| N | = | M12 |
| S | = | 9.5mm |
| G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 25.7 kN |
| Static load C0 | = | 15.2 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 11.5 Nm |
| Mass | = | 1.6 kg |
