SKU: EST205-SNR

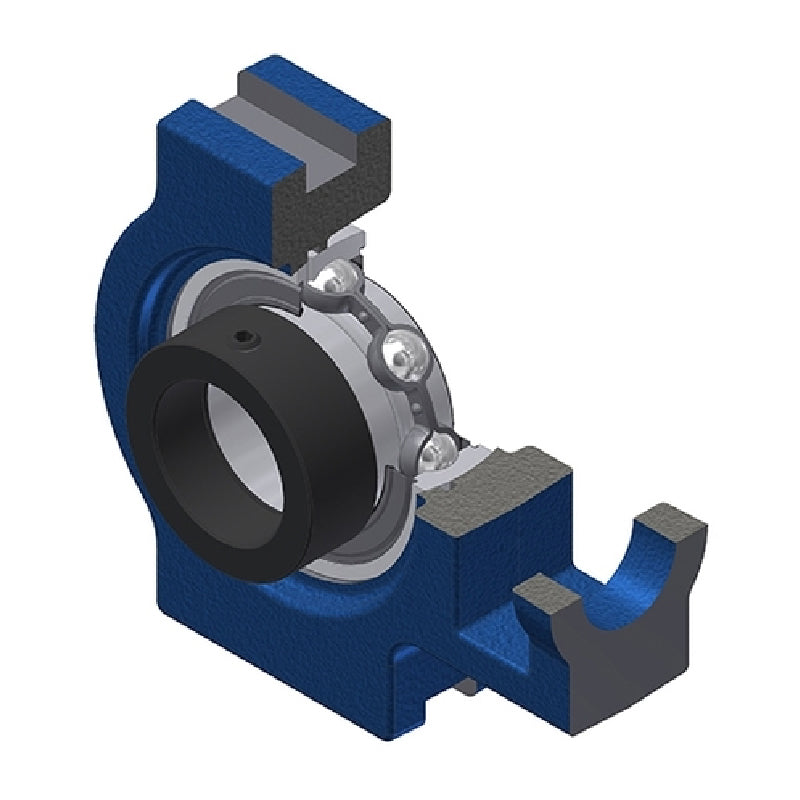

SNR EST205 Metric Cast Iron Take Up Unit with Eccentric Collar Insert 25mm Bore - Allow 2-3 Days
- Regular price
- €29.07 ex VAT
- Sale price
- €29,07
- Regular price
-
Not in stock
Quantity Price Breaks
3
€25.87
4
€24.42
9
€24.13
19
€23.84
49
€23.55
99
€23.26
499
€21.80
999
€21.51
1999
€21.22
2999
€20.93
4999
€20.35
SKU:
EST205-SNR
SNR EST205 Metric Cast Iron Take Up Unit with Eccentric Collar Insert 25mm Bore - Allow 2-3 Days
- Regular price
- €29.07 ex VAT
- Sale price
- €29,07
- Regular price
-
Description
EST200 Series Cast Iron Take Up Units: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter d | = | 25mm |
| A | = | 32mm |
| A1 | = | 12mm |
| A2 | = | 24mm |
| B1 | = | 30.9mm |
| d1 | = | 37.4mm |
| H | = | 89mm |
| H1 | = | 76mm |
| H2 | = | 51mm |
| L | = | 97mm |
| L1 | = | 62mm |
| L2 | = | 10mm |
| L3 | = | 51mm |
| N | = | 19mm |
| N1 | = | 16mm |
| N2 | = | 32mm |
| S | = | 7.5mm |
| G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 14 kN |
| Static load C0 | = | 7.88 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Mass | = | 0.79 kg |
