SKU: EXEHE205-SNR
SNR EXEHE205 Metric Cast Iron Hanger Bearing Unit with Eccentric Collar Insert 25mm Bore - Allow 2-3 Days
- Regular price
- €31.49 ex VAT
- Sale price
- €31,49
- Regular price
-
Not in stock
Quantity Price Breaks
3
€28.03
4
€26.45
9
€26.14
19
€25.82
49
€25.51
99
€25.19
499
€23.62
999
€23.30
1999
€22.99
2999
€22.67
4999
€22.04
SKU:
EXEHE205-SNR
SNR EXEHE205 Metric Cast Iron Hanger Bearing Unit with Eccentric Collar Insert 25mm Bore - Allow 2-3 Days
- Regular price
- €31.49 ex VAT
- Sale price
- €31,49
- Regular price
-
Description

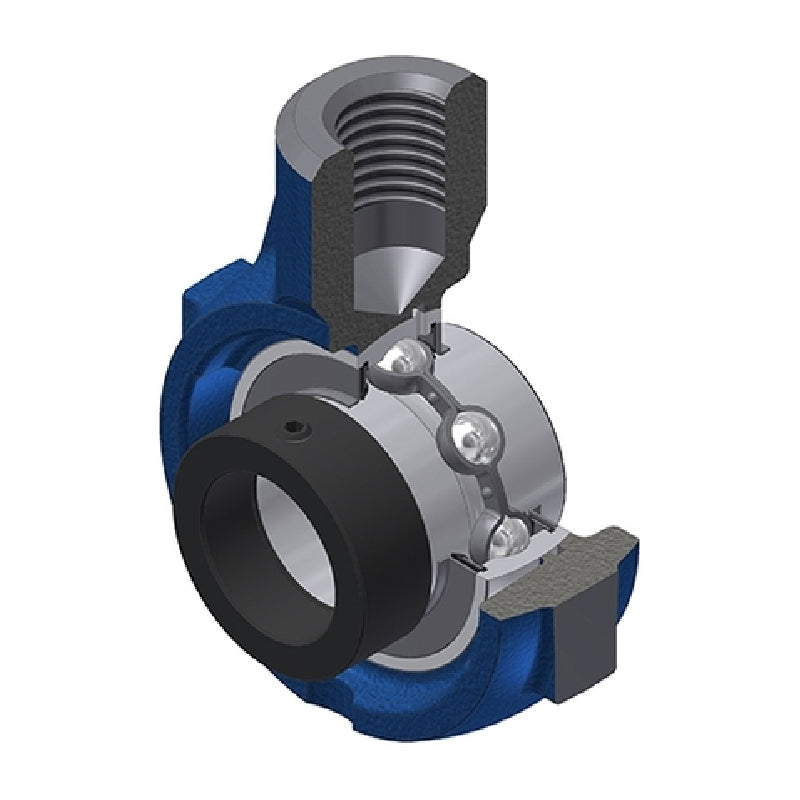

EXEHE200 Series Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and include a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter d | = | 25mm |
| A | = | 28mm |
| A2 | = | 35mm |
| B1 | = | 44.3mm |
| d1 | = | 37.4mm |
| E | = | 22mm |
| H | = | 70mm |
| L | = | 99mm |
| L1 | = | 64mm |
| L3 | = | 38mm |
| S | = | 17.4mm |
| G | = | R1/8& |
| Prime | = | |
| G1 | = | M20 |
| --- | = | Load rating |
| Dynamic load C | = | 14 kN |
| Static load C0 | = | 7.88 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Mass | = | 0.75 kg |
