SKU: EXF207-SNR

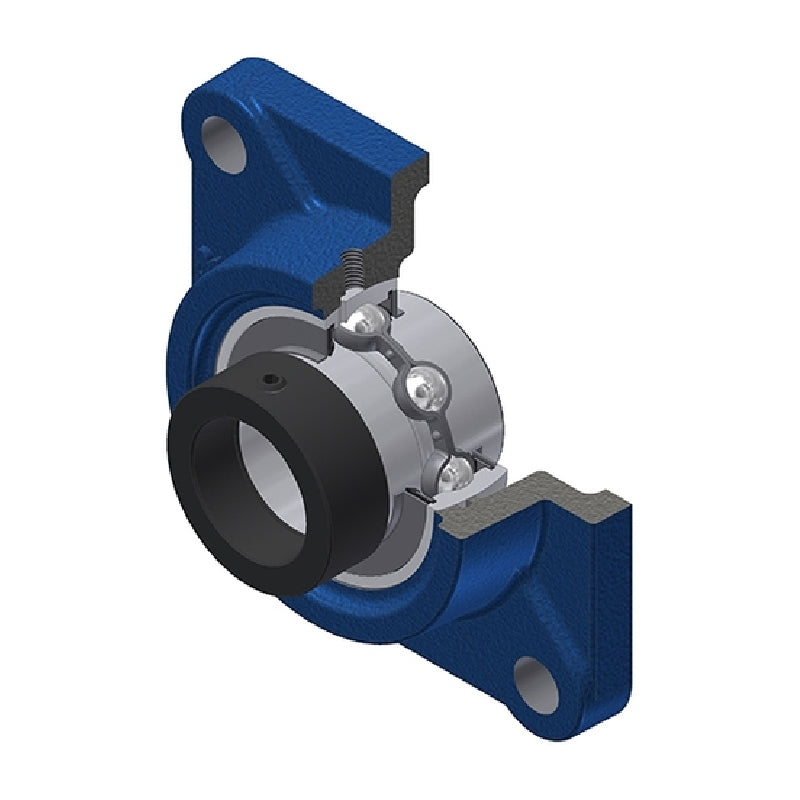

SNR EXF207 Metric Four Bolt Square Cast Iron Flange Housing with 35mm Bore Eccentric Collar Insert - Allow 2-3 Days
- Regular price
- €43.60 ex VAT
- Sale price
- €43,60
- Regular price
-
Not in stock
Quantity Price Breaks
3
€38.80
4
€36.62
9
€36.19
19
€35.75
49
€35.32
99
€34.88
499
€32.70
999
€32.26
1999
€31.83
2999
€31.39
4999
€30.52
SKU:
EXF207-SNR
SNR EXF207 Metric Four Bolt Square Cast Iron Flange Housing with 35mm Bore Eccentric Collar Insert - Allow 2-3 Days
- Regular price
- €43.60 ex VAT
- Sale price
- €43,60
- Regular price
-
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| --- | = | Dimensions |
| Shaft diameter d | = | 35mm |
| A | = | 34mm |
| A1 | = | 15mm |
| A2 | = | 51.3mm |
| B | = | 37.6mm |
| B1 | = | 51.1mm |
| d1 | = | 51.1mm |
| e | = | 19mm |
| J | = | 92mm |
| L | = | 117mm |
| N | = | 14mm |
| S | = | 18.8mm |
| G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 25.7 kN |
| Static load C0 | = | 15.2 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 11.5 Nm |
| Mass | = | 1.63 kg |
