SKU: EXF210-SNR

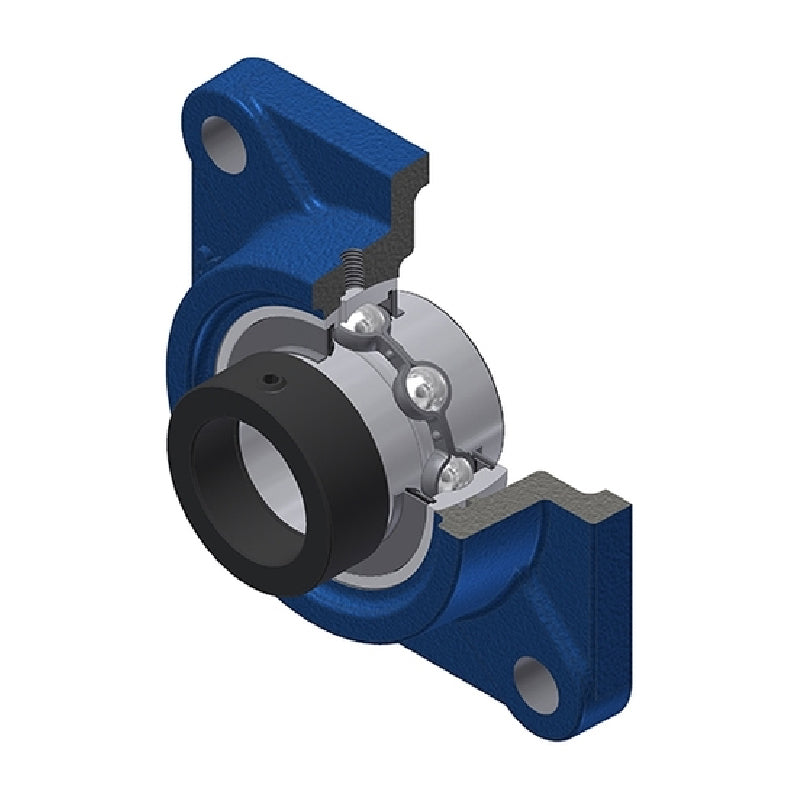

SNR EXF210 Metric Four Bolt Square Cast Iron Flange Housing with 50mm Bore Eccentric Collar Insert - Allow 2-3 Days
- Regular price
- €63.22 ex VAT
- Sale price
- €63,22
- Regular price
-
Not in stock
Quantity Price Breaks
3
€56.27
4
€53.10
9
€52.47
19
€51.84
49
€51.21
99
€50.58
499
€47.42
999
€46.78
1999
€46.15
2999
€45.52
4999
€44.25
SKU:
EXF210-SNR
SNR EXF210 Metric Four Bolt Square Cast Iron Flange Housing with 50mm Bore Eccentric Collar Insert - Allow 2-3 Days
- Regular price
- €63.22 ex VAT
- Sale price
- €63,22
- Regular price
-
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| --- | = | Dimensions |
| Shaft diameter d | = | 50mm |
| A | = | 40mm |
| A1 | = | 16mm |
| A2 | = | 60.1mm |
| B | = | 49.2mm |
| B1 | = | 62.7mm |
| d1 | = | 67.2mm |
| e | = | 22mm |
| J | = | 111mm |
| L | = | 143mm |
| N | = | 16mm |
| S | = | 24.6mm |
| G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 35.1 kN |
| Static load C0 | = | 23.2 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 11.5 Nm |
| Mass | = | 2.71 kg |
