SKU: EXF212-SNR

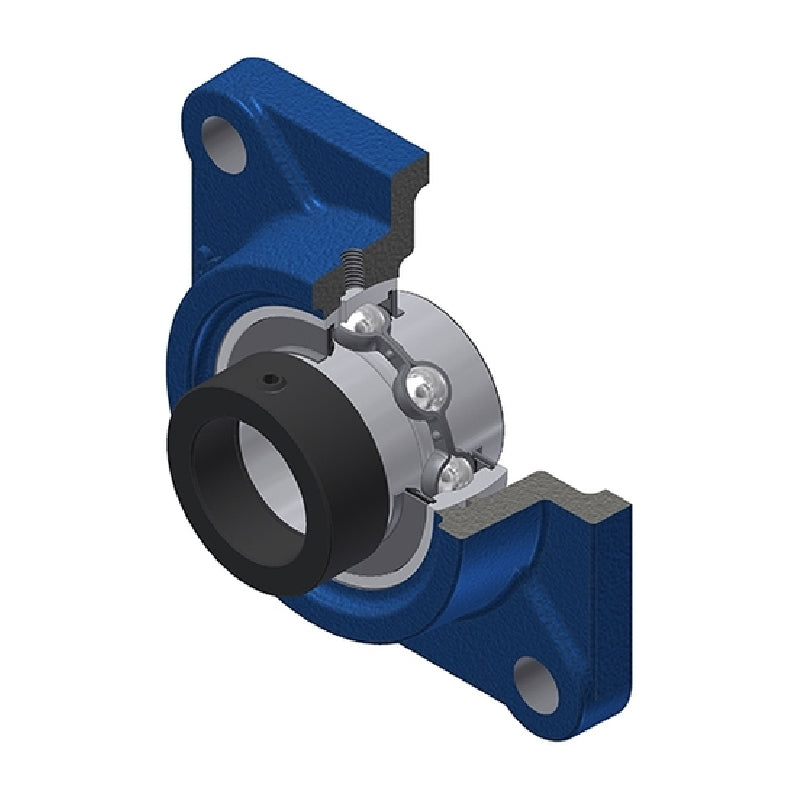

SNR EXF212 Metric Four Bolt Square Cast Iron Flange Housing with 60mm Bore Eccentric Collar Insert - Allow 2-3 Days
- Regular price
- €86.35 ex VAT
- Sale price
- €86,35
- Regular price
-
Not in stock
Quantity Price Breaks
3
€76.85
4
€72.53
9
€71.67
19
€70.81
49
€69.94
99
€69.08
499
€64.76
999
€63.90
1999
€63.04
2999
€62.17
4999
€60.45
SKU:
EXF212-SNR
SNR EXF212 Metric Four Bolt Square Cast Iron Flange Housing with 60mm Bore Eccentric Collar Insert - Allow 2-3 Days
- Regular price
- €86.35 ex VAT
- Sale price
- €86,35
- Regular price
-
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| --- | = | Dimensions |
| Shaft diameter d | = | 60mm |
| A | = | 48mm |
| A1 | = | 18mm |
| A2 | = | 75.8mm |
| B | = | 61.8mm |
| B1 | = | 77.7mm |
| d1 | = | 82mm |
| e | = | 29mm |
| J | = | 143mm |
| L | = | 175mm |
| N | = | 19mm |
| S | = | 30.9mm |
| G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 52.5 kN |
| Static load C0 | = | 32.8 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 22 Nm |
| Mass | = | 4.7 kg |
