SKU: EXFC208-SNR

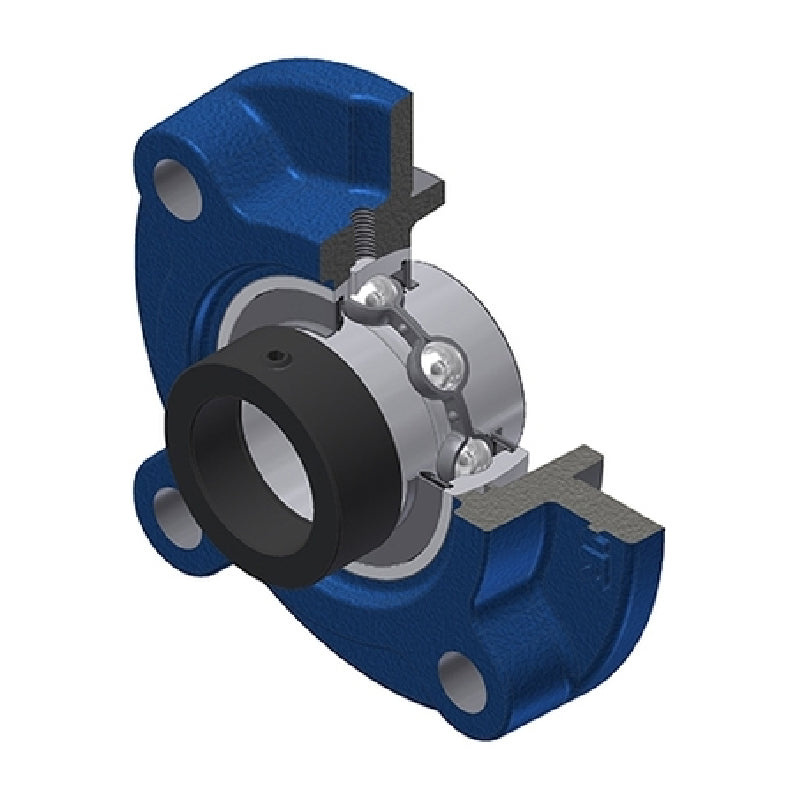

SNR EXFC208 Metric Four Bolt Cast Iron Round Flanged Housing with 40mm Eccentric Collar Insert - Allow 2-3 Days
- Regular price
- €50.14 ex VAT
- Sale price
- €50,14
- Regular price
-
Not in stock
Quantity Price Breaks
3
€44.62
4
€42.12
9
€41.62
19
€41.11
49
€40.61
99
€40.11
499
€37.61
999
€37.10
1999
€36.60
2999
€36.10
4999
€35.10
SKU:
EXFC208-SNR
SNR EXFC208 Metric Four Bolt Cast Iron Round Flanged Housing with 40mm Eccentric Collar Insert - Allow 2-3 Days
- Regular price
- €50.14 ex VAT
- Sale price
- €50,14
- Regular price
-
Description
EXFC200 Series 4 Bolt Cast Iron Round Flanged Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar with a grub screw to facilitate securing the bearing to the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar/grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter d | = | 40mm |
| A | = | 36mm |
| A1 | = | 9mm |
| A2 | = | 45.9mm |
| A4 | = | 26mm |
| B | = | 42.8mm |
| B1 | = | 56.3mm |
| d1 | = | 58mm |
| e | = | 11mm |
| H3 | = | 100mm |
| J | = | 120mm |
| L | = | 145mm |
| N | = | 14mm |
| S | = | 21.4mm |
| G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 29.6 kN |
| Static load C0 | = | 18.2 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 11.5 Nm |
| Mass | = | 2.13 kg |
