SKU: EXFCE208L3-SNR

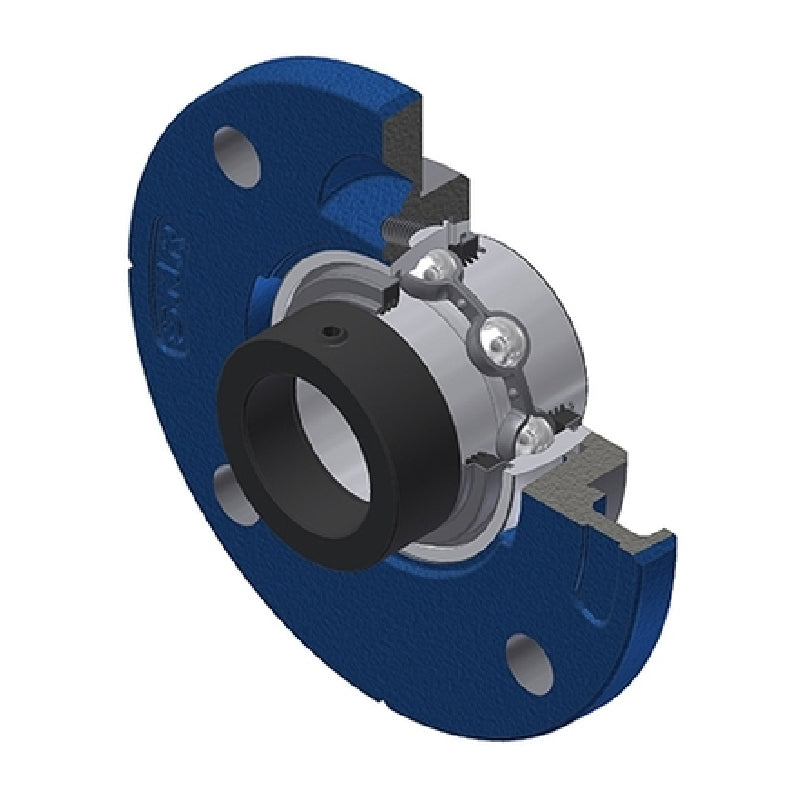

SNR EXFCE208L3 Metric Four Bolt Cast Iron Round Flanged Housing with 40mm Eccentric Collar Insert with Triple Lip Seal
- Regular price
- €77.93 ex VAT
- Sale price
- €77,93
- Regular price
-
In stock
Quantity Price Breaks
3
€69.36
4
€65.46
9
€64.68
19
€63.90
49
€63.12
99
€62.34
499
€58.45
999
€57.67
1999
€56.89
2999
€56.11
4999
€54.55
SKU:
EXFCE208L3-SNR
SNR EXFCE208L3 Metric Four Bolt Cast Iron Round Flanged Housing with 40mm Eccentric Collar Insert with Triple Lip Seal
- Regular price
- €77.93 ex VAT
- Sale price
- €77,93
- Regular price
-
Description
EXFCE200 Series 4 Bolt Cast Iron Round Flanged Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar with a grub screw to facilitate securing the bearing to the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar/grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter | = | 40mm |
| A | = | 23mm |
| A1 | = | 11.5mm |
| A2 | = | 33.9mm |
| A3 | = | 2mm |
| B | = | 42.8mm |
| B1 | = | 56.3mm |
| d1 | = | 58mm |
| e | = | -1mm |
| H3 | = | 100mm |
| J | = | 120mm |
| L | = | 145mm |
| N | = | 11.5mm |
| S | = | 21.4mm |
| G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 29.6 kN |
| Static load C0 | = | 18.2 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 11.5 Nm |
| Mass | = | 1.78 kg |
