SKU: EXFCE211-SNR
SNR EXFCE211 Metric Four Bolt Cast Iron Round Flanged Housing with 55mm Eccentric Collar Insert - Allow 2-3 Days
- Regular price
- €73.93 ex VAT
- Sale price
- €73,93
- Regular price
-
Not in stock
Quantity Price Breaks
3
€65.80
4
€62.10
9
€61.36
19
€60.62
49
€59.88
99
€59.14
499
€55.45
999
€54.71
1999
€53.97
2999
€53.23
4999
€51.75
SKU:
EXFCE211-SNR
SNR EXFCE211 Metric Four Bolt Cast Iron Round Flanged Housing with 55mm Eccentric Collar Insert - Allow 2-3 Days
- Regular price
- €73.93 ex VAT
- Sale price
- €73,93
- Regular price
-
Description

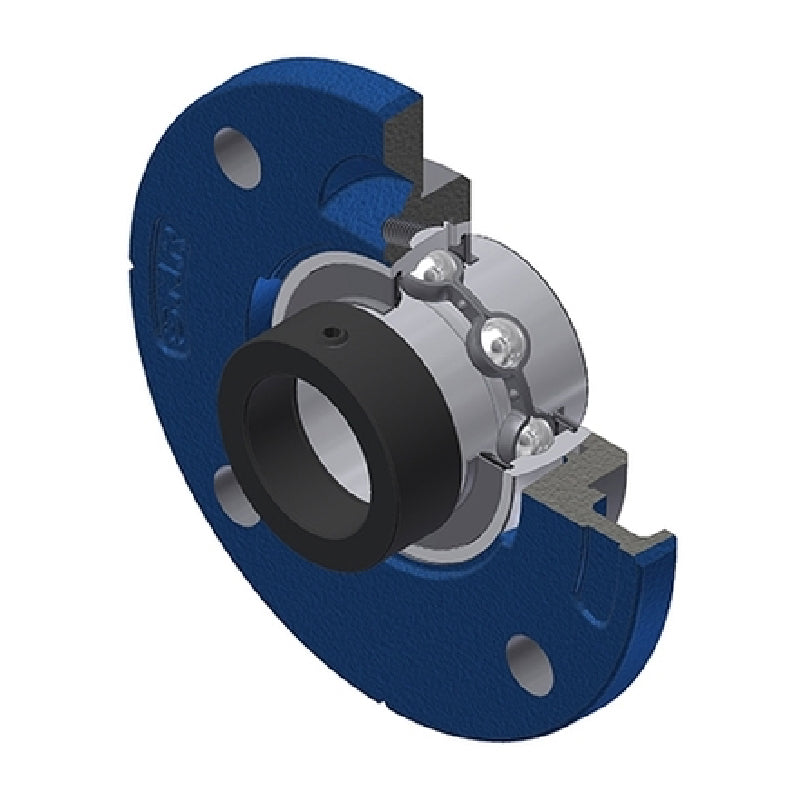

EXFCE200 Series 4 Bolt Cast Iron Round Flanged Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar with a grub screw to facilitate securing the bearing to the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar/grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter | = | 55mm |
| A | = | 27.5mm |
| A1 | = | 15mm |
| A2 | = | 43.6mm |
| A3 | = | 3mm |
| B | = | 55.4mm |
| B1 | = | 71.3mm |
| d1 | = | 74.5mm |
| H3 | = | 125mm |
| J | = | 150mm |
| L | = | 185mm |
| N | = | 18mm |
| S | = | 27.7mm |
| G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 43.55 kN |
| Static load C0 | = | 29.2 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 22 Nm |
| Mass | = | 3.4 kg |
