SKU: EXFCE214-SNR

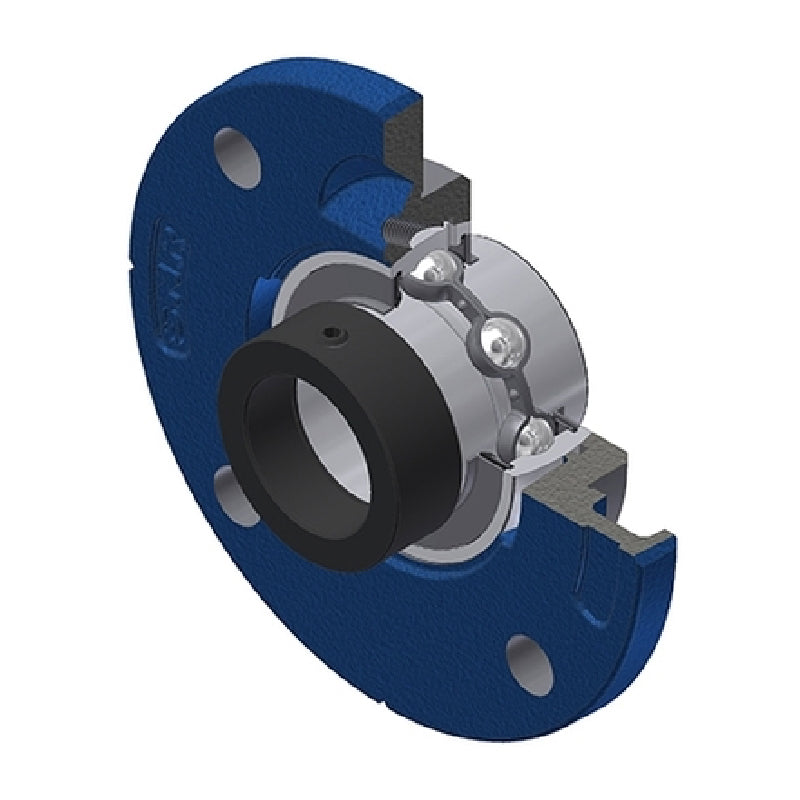

SNR EXFCE214 Metric Four Bolt Cast Iron Round Flanged Housing with 70mm Eccentric Collar Insert - Allow 2-3 Days
- Regular price
- €136.25 ex VAT
- Sale price
- €136,25
- Regular price
-
Not in stock
Quantity Price Breaks
3
€121.26
4
€114.45
9
€113.09
19
€111.73
49
€110.36
99
€109.00
499
€102.19
999
€100.83
1999
€99.46
2999
€98.10
4999
€95.38
SKU:
EXFCE214-SNR
SNR EXFCE214 Metric Four Bolt Cast Iron Round Flanged Housing with 70mm Eccentric Collar Insert - Allow 2-3 Days
- Regular price
- €136.25 ex VAT
- Sale price
- €136,25
- Regular price
-
Description
EXFCE200 Series 4 Bolt Cast Iron Round Flanged Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar with a grub screw to facilitate securing the bearing to the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar/grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter | = | 70mm |
| A | = | 33mm |
| A1 | = | 18mm |
| A2 | = | 51.6mm |
| A3 | = | 6mm |
| B | = | 68.2mm |
| B1 | = | 85.7mm |
| d1 | = | 96.8mm |
| H3 | = | 150mm |
| J | = | 177mm |
| L | = | 215mm |
| N | = | 18mm |
| S | = | 34.1mm |
| G | = | R1/8& |
| Prime | = | |
| --- | = | Load rating |
| Dynamic load C | = | 62 kN |
| Static load C0 | = | 45 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 22 Nm |
| Mass | = | 5.58 kg |
