SKU: EXFE207-SNR

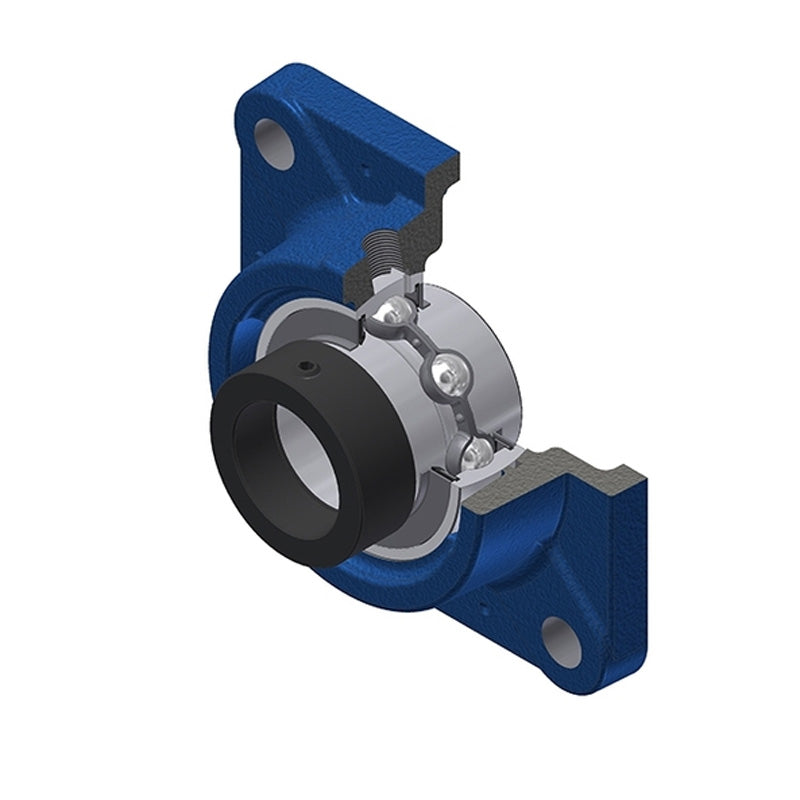

SNR EXFE207 Metric Four Bolt Square Cast Iron Flange Housing with 35mm Bore Eccentric Collar Insert - Allow 2-3 Days
- Regular price
- €39.12 ex VAT
- Sale price
- €39,12
- Regular price
-
Not in stock
Quantity Price Breaks
3
€34.82
4
€32.86
9
€32.47
19
€32.08
49
€31.69
99
€31.30
499
€29.34
999
€28.95
1999
€28.56
2999
€28.17
4999
€27.38
SKU:
EXFE207-SNR
SNR EXFE207 Metric Four Bolt Square Cast Iron Flange Housing with 35mm Bore Eccentric Collar Insert - Allow 2-3 Days
- Regular price
- €39.12 ex VAT
- Sale price
- €39,12
- Regular price
-
Description
EXFE200 Series 4 Bolt Cast Iron Square Flange Housing: These cast iron housing units include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter | = | 35mm |
| A | = | 36mm |
| A1 | = | 12.5mm |
| A2 | = | 53.3mm |
| B | = | 37.6mm |
| B1 | = | 51.1mm |
| d1 | = | 51.1mm |
| e | = | 21mm |
| J | = | 92mm |
| L | = | 118mm |
| N | = | 14mm |
| S | = | 18.8mm |
| G | = | R1/8& |
| Prime | = | |
| --- | = | Load rating |
| Dynamic load C | = | 25.7 kN |
| Static load C0 | = | 15.2 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 11.5 Nm |
| Mass | = | 1.7 kg |
