SKU: EXFE210-SNR

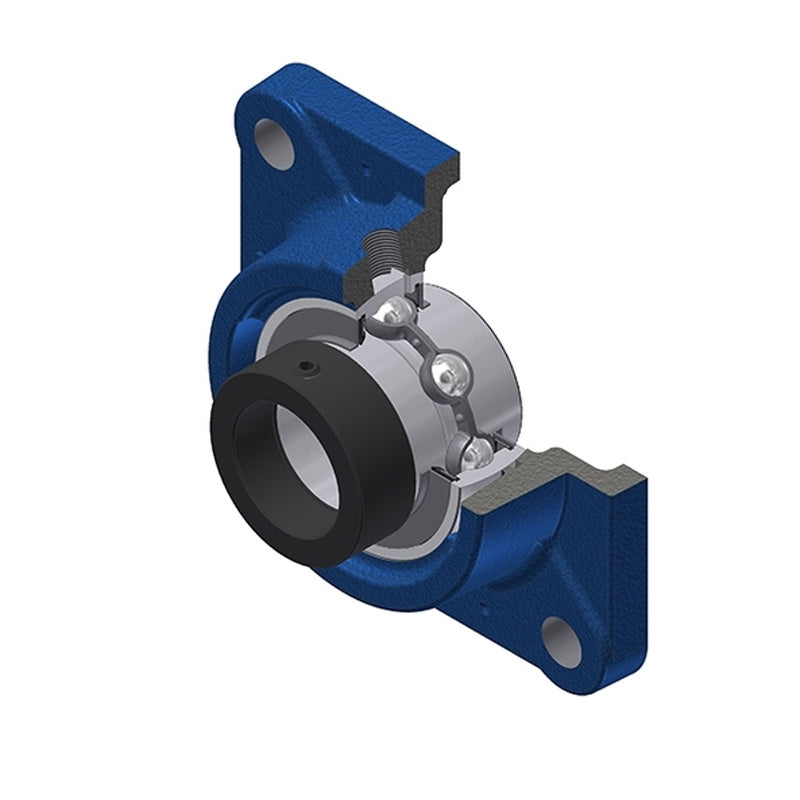

SNR EXFE210 Metric Four Bolt Square Cast Iron Flange Housing with 50mm Bore Eccentric Collar Insert
- Regular price
- €56.68 ex VAT
- Sale price
- €56,68
- Regular price
-
In stock
Quantity Price Breaks
3
€50.45
4
€47.61
9
€47.04
19
€46.48
49
€45.91
99
€45.34
499
€42.51
999
€41.94
1999
€41.38
2999
€40.81
4999
€39.68
SKU:
EXFE210-SNR
SNR EXFE210 Metric Four Bolt Square Cast Iron Flange Housing with 50mm Bore Eccentric Collar Insert
- Regular price
- €56.68 ex VAT
- Sale price
- €56,68
- Regular price
-
Description
EXFE200 Series 4 Bolt Cast Iron Square Flange Housing: These cast iron housing units include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter | = | 50mm |
| A | = | 44mm |
| A1 | = | 13mm |
| A2 | = | 66.1mm |
| B | = | 49.2mm |
| B1 | = | 62.7mm |
| d1 | = | 67.2mm |
| e | = | 28mm |
| J | = | 111mm |
| L | = | 143mm |
| N | = | 18mm |
| S | = | 24.6mm |
| G | = | R1/8& |
| Prime | = | |
| --- | = | Load rating |
| Dynamic load C | = | 35.1 kN |
| Static load C0 | = | 23.2 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 11.5 Nm |
| Mass | = | 2.77 kg |
