SKU: EXFE211-SNR

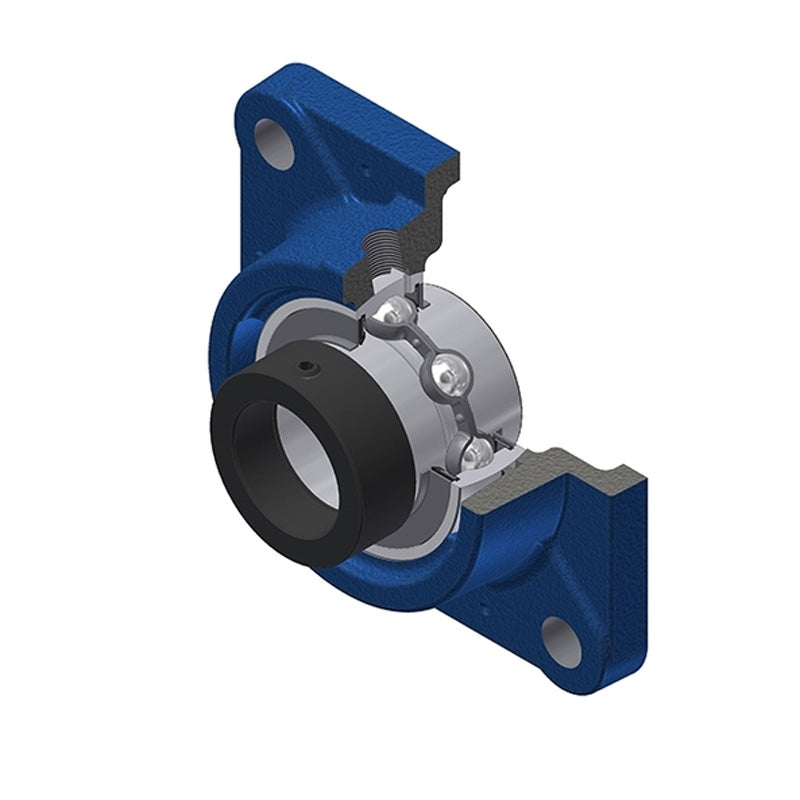

SNR EXFE211 Metric Four Bolt Square Cast Iron Flange Housing with 55mm Bore Eccentric Collar Insert - Allow 2-3 Days
- Regular price
- €69.94 ex VAT
- Sale price
- €69,94
- Regular price
-
Not in stock
Quantity Price Breaks
3
€62.25
4
€58.75
9
€58.05
19
€57.35
49
€56.65
99
€55.95
499
€52.46
999
€51.76
1999
€51.06
2999
€50.36
4999
€48.96
SKU:
EXFE211-SNR
SNR EXFE211 Metric Four Bolt Square Cast Iron Flange Housing with 55mm Bore Eccentric Collar Insert - Allow 2-3 Days
- Regular price
- €69.94 ex VAT
- Sale price
- €69,94
- Regular price
-
Description
EXFE200 Series 4 Bolt Cast Iron Square Flange Housing: These cast iron housing units include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter | = | 55mm |
| A | = | 48.5mm |
| A1 | = | 15mm |
| A2 | = | 74.6mm |
| B | = | 55.4mm |
| B1 | = | 71.3mm |
| d1 | = | 74.5mm |
| e | = | 31mm |
| J | = | 130mm |
| L | = | 162mm |
| N | = | 18mm |
| S | = | 27.7mm |
| G | = | R1/8& |
| Prime | = | |
| --- | = | Load rating |
| Dynamic load C | = | 43.55 kN |
| Static load C0 | = | 29.2 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 22 Nm |
| Mass | = | 3.93 kg |
