SKU: EXFL206-SNR

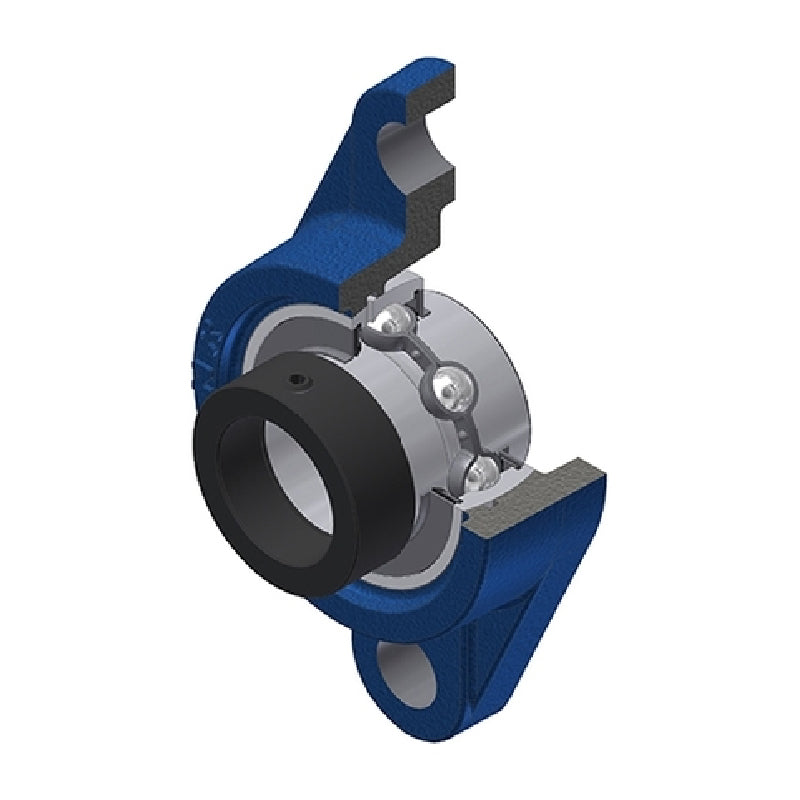

SNR EXFL206 Metric Two Bolt Cast Iron Oval Housing with 30mm Bore Eccentric Collar Insert - Allow 2-3 Days
- Regular price
- €39.12 ex VAT
- Sale price
- €39,12
- Regular price
-
Not in stock
Quantity Price Breaks
3
€34.82
4
€32.86
9
€32.47
19
€32.08
49
€31.69
99
€31.30
499
€29.34
999
€28.95
1999
€28.56
2999
€28.17
4999
€27.38
SKU:
EXFL206-SNR
SNR EXFL206 Metric Two Bolt Cast Iron Oval Housing with 30mm Bore Eccentric Collar Insert - Allow 2-3 Days
- Regular price
- €39.12 ex VAT
- Sale price
- €39,12
- Regular price
-
Description
EXFL200 Series 2 Bolt Cast Iron Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter d | = | 30mm |
| A | = | 31mm |
| A1 | = | 13mm |
| A2 | = | 48.1mm |
| B | = | 36.4mm |
| B1 | = | 48.3mm |
| d1 | = | 44.1mm |
| e | = | 18mm |
| H | = | 148mm |
| J | = | 117mm |
| L | = | 80mm |
| N | = | 16mm |
| S | = | 18.2mm |
| G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 19.5 kN |
| Static load C0 | = | 11.2 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 11.5 Nm |
| Mass | = | 0.98 kg |
