SKU: EXFLE206-SNR

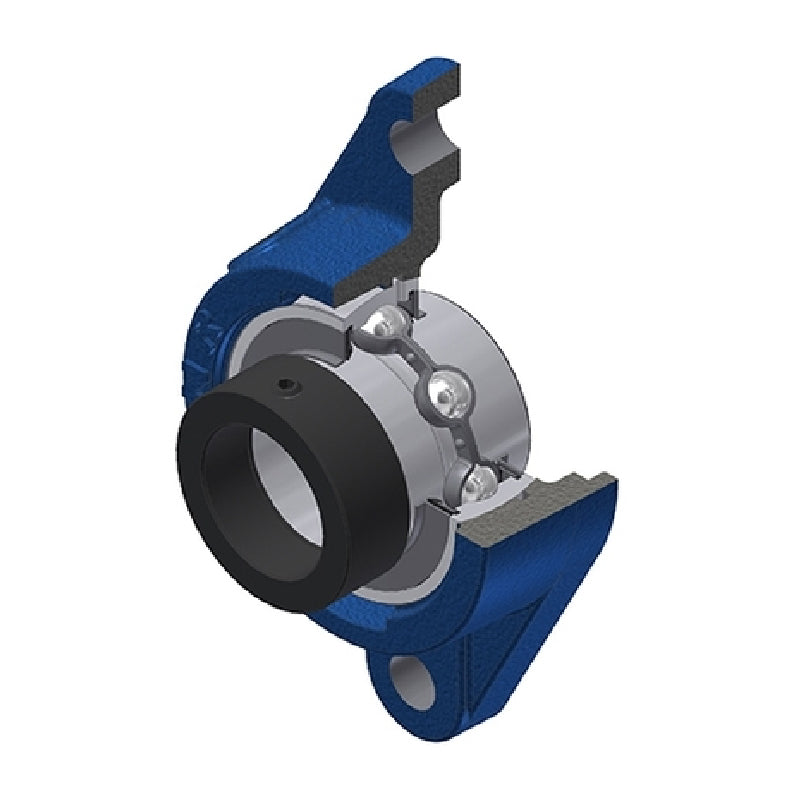

SNR EXFLE206 Metric Two Bolt Cast Iron Oval Housing with 30mm Bore Eccentric Collar Insert
- Regular price
- €33.91 ex VAT
- Sale price
- €33,91
- Regular price
-
In stock
Quantity Price Breaks
3
€30.18
4
€28.48
9
€28.15
19
€27.81
49
€27.47
99
€27.13
499
€25.43
999
€25.09
1999
€24.75
2999
€24.42
4999
€23.74
SKU:
EXFLE206-SNR
SNR EXFLE206 Metric Two Bolt Cast Iron Oval Housing with 30mm Bore Eccentric Collar Insert
- Regular price
- €33.91 ex VAT
- Sale price
- €33,91
- Regular price
-
Description
EXFLE200 Series 2 Bolt Cast Iron Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter d | = | 30mm |
| A | = | 32.1mm |
| A1 | = | 12mm |
| A2 | = | 50.1mm |
| B | = | 36.4mm |
| B1 | = | 48.3mm |
| d1 | = | 44.1mm |
| e | = | 20mm |
| H | = | 142mm |
| J | = | 116.5mm |
| L | = | 80mm |
| N | = | 11.5mm |
| S | = | 18.2mm |
| G | = | R1/8& |
| Prime | = | |
| --- | = | Load rating |
| Dynamic load C | = | 19.5 kN |
| Static load C0 | = | 11.2 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 11.5 Nm |
| Mass | = | 0.91 kg |
