SKU: EXFLZ207-SNR

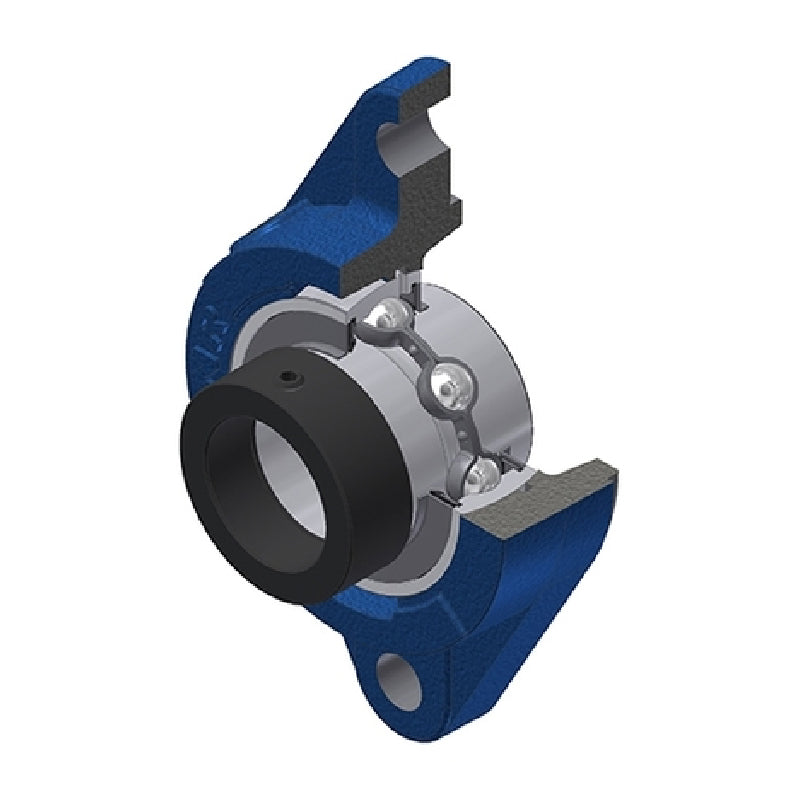

SNR EXFLZ207 Metric Two Bolt Cast Iron Oval Housing with 35mm Bore Eccentric Collar Insert - Allow 2-3 Days
- Regular price
- €45.78 ex VAT
- Sale price
- €45,78
- Regular price
-
Not in stock
Quantity Price Breaks
3
€40.74
4
€38.46
9
€38.00
19
€37.54
49
€37.08
99
€36.62
499
€34.34
999
€33.88
1999
€33.42
2999
€32.96
4999
€32.05
SKU:
EXFLZ207-SNR
SNR EXFLZ207 Metric Two Bolt Cast Iron Oval Housing with 35mm Bore Eccentric Collar Insert - Allow 2-3 Days
- Regular price
- €45.78 ex VAT
- Sale price
- €45,78
- Regular price
-
Description
EXFLZ200 Series 2 Bolt Cast Iron Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical

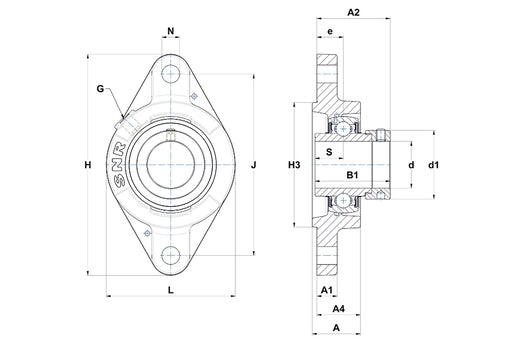

| --- | = | Dimensions |
| Shaft diameter d | = | 35mm |
| A | = | 32.5mm |
| A1 | = | 12.5mm |
| A2 | = | 49.3mm |
| A4 | = | 28.5mm |
| B | = | 37.6mm |
| B1 | = | 51.1mm |
| d1 | = | 51.1mm |
| e | = | 17mm |
| H | = | 155mm |
| H3 | = | 90mm |
| J | = | 130mm |
| L | = | 94mm |
| N | = | 14mm |
| S | = | 18.8mm |
| G | = | R1/8& |
| Prime | = | |
| --- | = | Load rating |
| Dynamic load C | = | 25.7 kN |
| Static load C0 | = | 15.2 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 11.5 Nm |
| Mass | = | 1.4 kg |
