SKU: EXP208-SNR

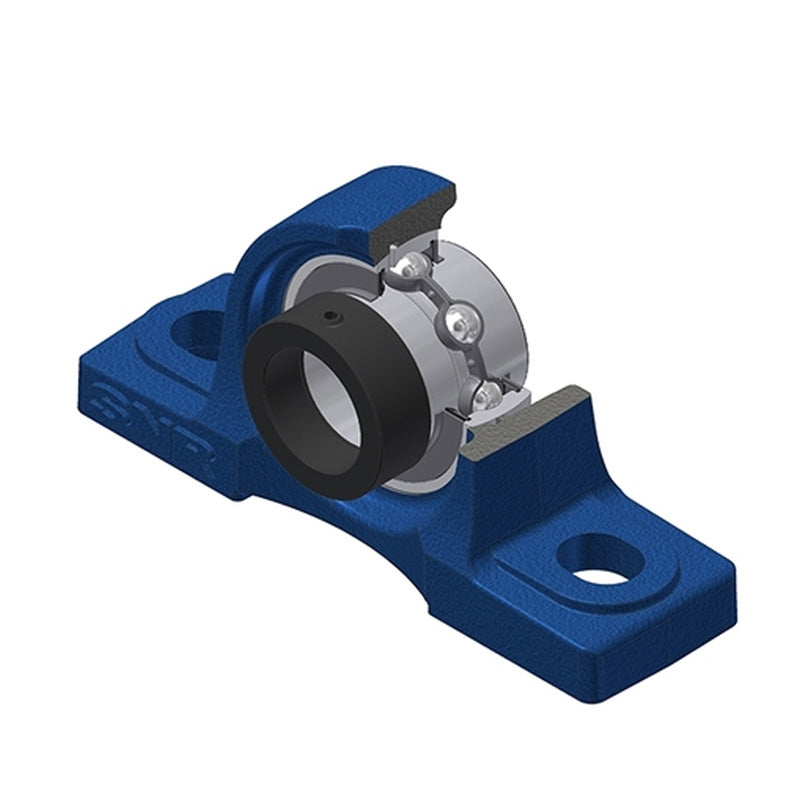

SNR EXP208 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 40mm Eccentric Collar Insert - Allow 2-3 Days
- Regular price
- €47.96 ex VAT
- Sale price
- €47,96
- Regular price
-
Not in stock
Quantity Price Breaks
3
€42.68
4
€40.29
9
€39.81
19
€39.33
49
€38.85
99
€38.37
499
€35.97
999
€35.49
1999
€35.01
2999
€34.53
4999
€33.57
SKU:
EXP208-SNR
SNR EXP208 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 40mm Eccentric Collar Insert - Allow 2-3 Days
- Regular price
- €47.96 ex VAT
- Sale price
- €47,96
- Regular price
-
Description
EXP200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter d | = | 40mm |
| A | = | 54mm |
| A1 | = | 34mm |
| B | = | 42.8mm |
| d1 | = | 58mm |
| H | = | 49.2mm |
| H1 | = | 19mm |
| H2 | = | 100mm |
| J | = | 137mm |
| L | = | 184mm |
| L1 | = | 52mm |
| N | = | 17mm |
| N1 | = | 23mm |
| S | = | 21.4mm |
| Dz | = | mm |
| Z | = | mm |
| G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 29.6 kN |
| Static load C0 | = | 18.2 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 11.5 Nm |
| Mass | = | 2.28 kg |
