SKU: EXP209-SNR

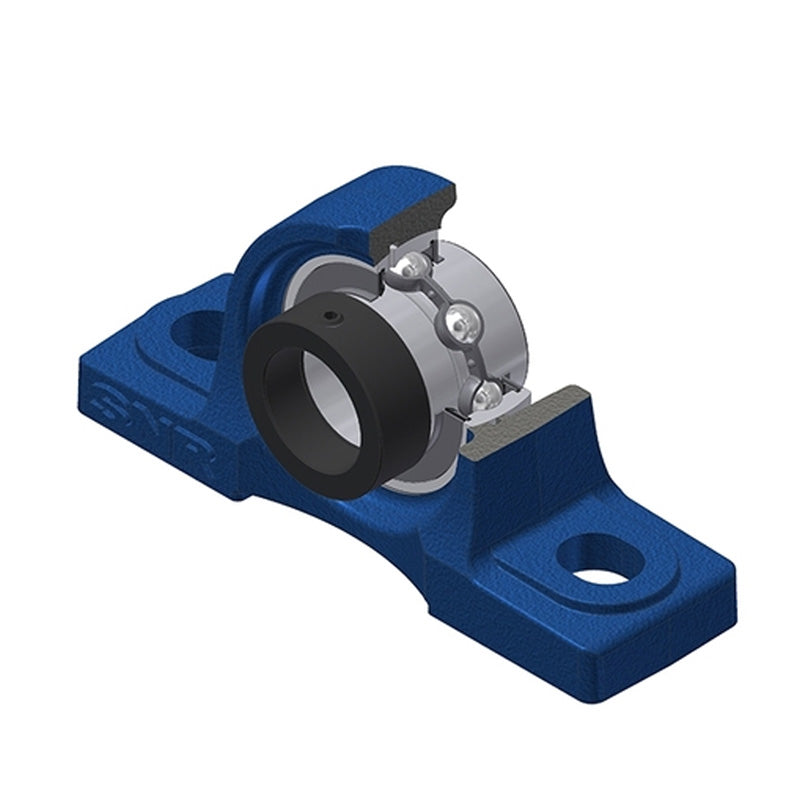

SNR EXP209 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 45mm Eccentric Collar Insert - Allow 2-3 Days
- Regular price
- €54.50 ex VAT
- Sale price
- €54,50
- Regular price
-
Not in stock
Quantity Price Breaks
3
€48.51
4
€45.78
9
€45.24
19
€44.69
49
€44.15
99
€43.60
499
€40.88
999
€40.33
1999
€39.79
2999
€39.24
4999
€38.15
SKU:
EXP209-SNR
SNR EXP209 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 45mm Eccentric Collar Insert - Allow 2-3 Days
- Regular price
- €54.50 ex VAT
- Sale price
- €54,50
- Regular price
-
Description
EXP200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter d | = | 45mm |
| A | = | 54mm |
| A1 | = | 37mm |
| B | = | 42.8mm |
| d1 | = | 62mm |
| H | = | 54mm |
| H1 | = | 20mm |
| H2 | = | 108mm |
| J | = | 146mm |
| L | = | 190mm |
| L1 | = | 60mm |
| N | = | 17mm |
| N1 | = | 23mm |
| S | = | 21.4mm |
| Dz | = | mm |
| Z | = | mm |
| G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 31.85 kN |
| Static load C0 | = | 20.8 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 11.5 Nm |
| Mass | = | 2.57 kg |
