SKU: EXP212-SNR

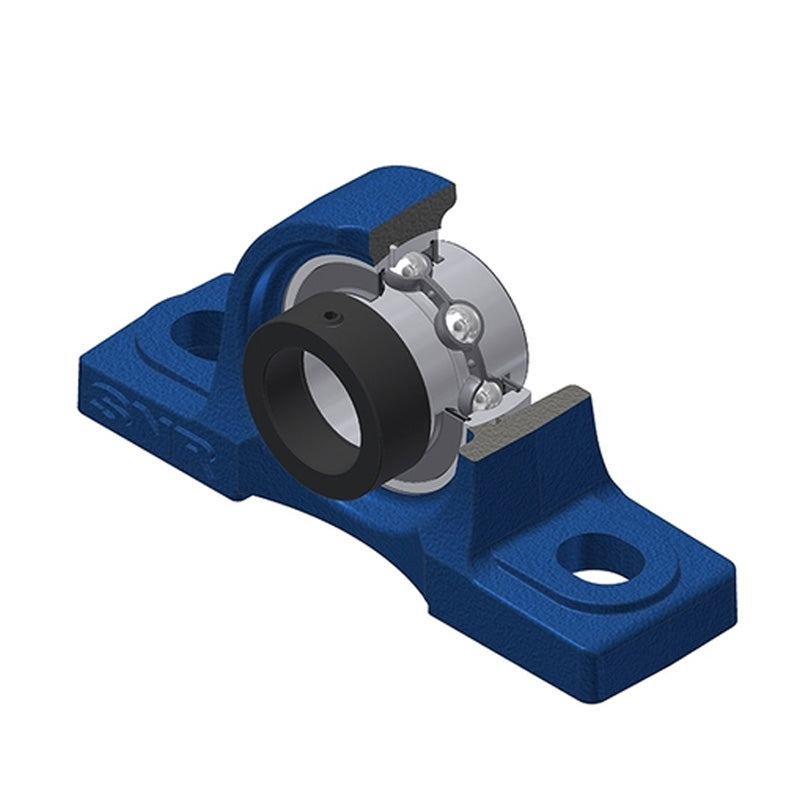

SNR EXP212 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 60mm Eccentric Collar Insert - Allow 2-3 Days
- Regular price
- €86.35 ex VAT
- Sale price
- €86,35
- Regular price
-
Not in stock
Quantity Price Breaks
3
€76.85
4
€72.53
9
€71.67
19
€70.81
49
€69.94
99
€69.08
499
€64.76
999
€63.90
1999
€63.04
2999
€62.17
4999
€60.45
SKU:
EXP212-SNR
SNR EXP212 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 60mm Eccentric Collar Insert - Allow 2-3 Days
- Regular price
- €86.35 ex VAT
- Sale price
- €86,35
- Regular price
-
Description
EXP200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter d | = | 60mm |
| A | = | 70mm |
| A1 | = | 44mm |
| B | = | 61.8mm |
| d1 | = | 82mm |
| H | = | 69.8mm |
| H1 | = | 25mm |
| H2 | = | 138mm |
| J | = | 184mm |
| L | = | 241mm |
| L1 | = | 70mm |
| N | = | 20mm |
| N1 | = | 25mm |
| S | = | 30.9mm |
| Dz | = | mm |
| Z | = | mm |
| G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 52.5 kN |
| Static load C0 | = | 32.8 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 22 Nm |
| Mass | = | 5.37 kg |
