SKU: EXP216-SNR

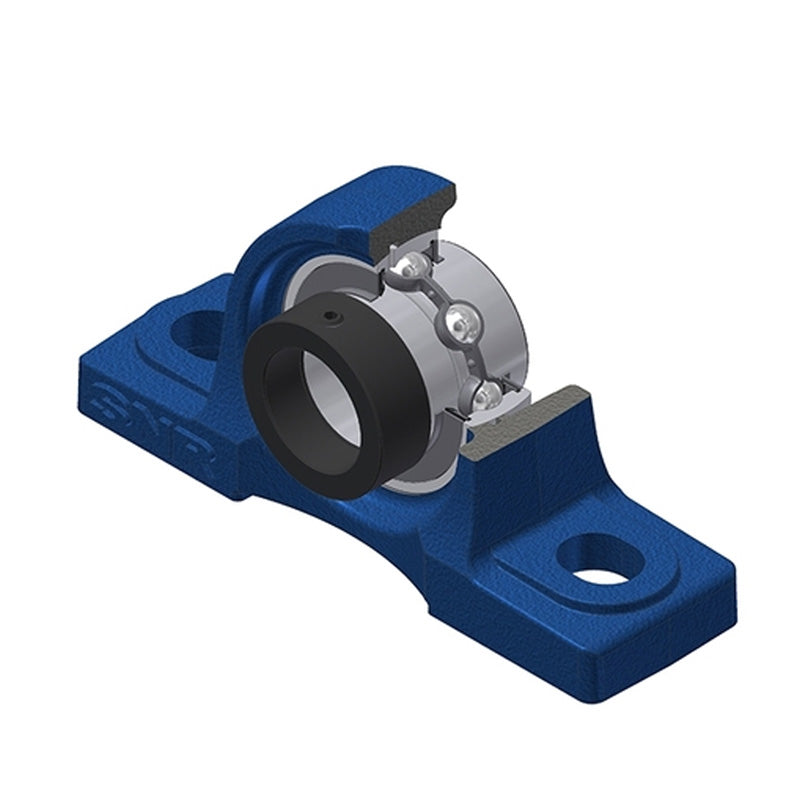

SNR EXP216 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 80mm Eccentric Collar Insert
- Regular price
- €174.39 ex VAT
- Sale price
- €174,39
- Regular price
-
In stock
Quantity Price Breaks
3
€155.21
4
€146.49
9
€144.74
19
€143.00
49
€141.26
99
€139.51
499
€130.79
999
€129.05
1999
€127.30
2999
€125.56
4999
€122.07
SKU:
EXP216-SNR
SNR EXP216 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 80mm Eccentric Collar Insert
- Regular price
- €174.39 ex VAT
- Sale price
- €174,39
- Regular price
-
Description
EXP200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter d | = | 80mm |
| A | = | 78mm |
| A1 | = | 51mm |
| B | = | 74.6mm |
| d1 | = | 110mm |
| H | = | 88.9mm |
| H1 | = | 30mm |
| H2 | = | 175mm |
| J | = | 232mm |
| L | = | 292mm |
| L1 | = | 91mm |
| N | = | 25mm |
| N1 | = | 31mm |
| S | = | 37.3mm |
| Dz | = | mm |
| Z | = | mm |
| G | = | M10x1 |
| --- | = | Load rating |
| Dynamic load C | = | 72.5 kN |
| Static load C0 | = | 54.2 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 33 Nm |
| Mass | = | 9.32 kg |
