SKU: EXP310-SNR

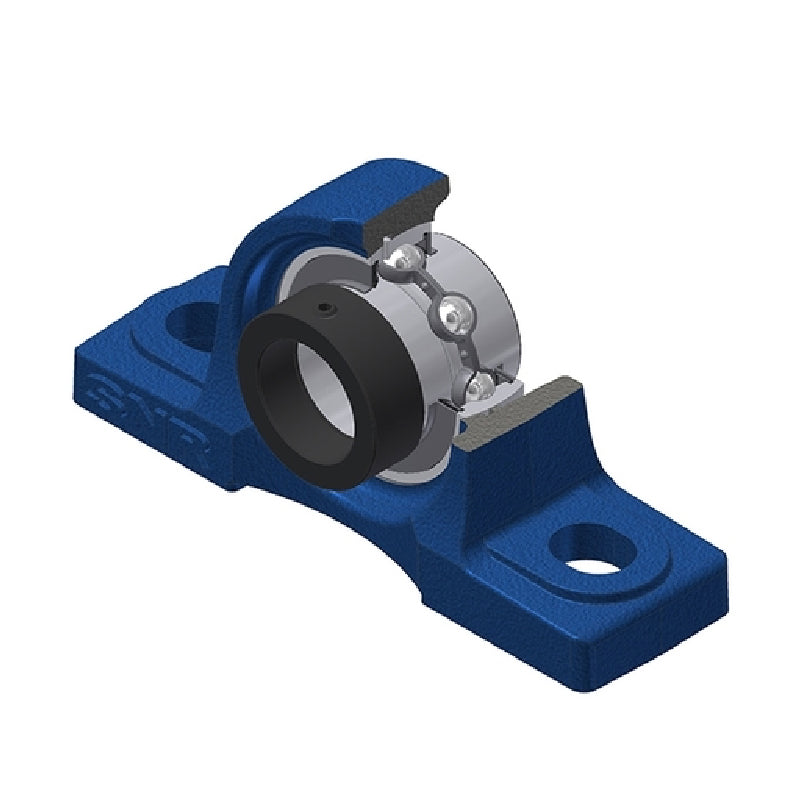

SNR EXP310 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Eccentric Collar Insert - Allow 2-3 Days
- Regular price
- €98.10 ex VAT
- Sale price
- €98,10
- Regular price
-
Not in stock
Quantity Price Breaks
3
€87.31
4
€82.40
9
€81.42
19
€80.44
49
€79.46
99
€78.48
499
€73.58
999
€72.59
1999
€71.61
2999
€70.63
4999
€68.67
SKU:
EXP310-SNR
SNR EXP310 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Eccentric Collar Insert - Allow 2-3 Days
- Regular price
- €98.10 ex VAT
- Sale price
- €98,10
- Regular price
-
Description
EXP200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter d | = | 50mm |
| A | = | 75mm |
| A1 | = | 48mm |
| B | = | 49.2mm |
| d1 | = | 76.2mm |
| H | = | 75mm |
| H1 | = | 27mm |
| H2 | = | 143mm |
| J | = | 212mm |
| L | = | 275mm |
| L1 | = | 75mm |
| N | = | 20mm |
| N1 | = | 35mm |
| S | = | 24.6mm |
| Dz | = | mm |
| Z | = | mm |
| G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 62 kN |
| Static load C0 | = | 37.8 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 22 Nm |
| Mass | = | 6.36 kg |
