SKU: EXP311-SNR

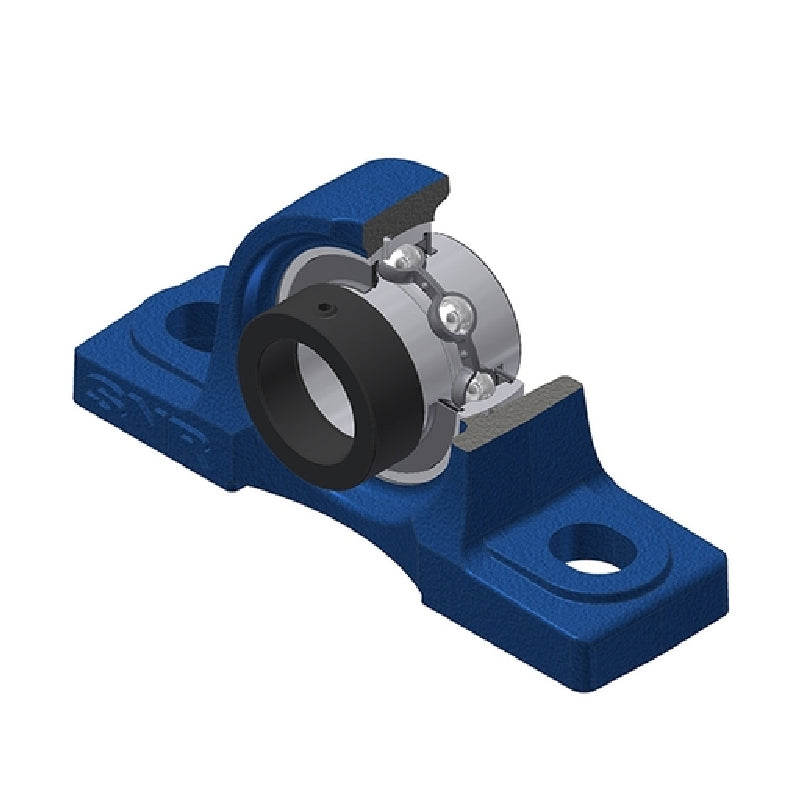

SNR EXP311 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 55mm Eccentric Collar Insert - Allow 2-3 Days
- Regular price
- €123.53 ex VAT
- Sale price
- €123,53
- Regular price
-
Not in stock
Quantity Price Breaks
3
€109.94
4
€103.77
9
€102.53
19
€101.29
49
€100.06
99
€98.82
499
€92.65
999
€91.41
1999
€90.18
2999
€88.94
4999
€86.47
SKU:
EXP311-SNR
SNR EXP311 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 55mm Eccentric Collar Insert - Allow 2-3 Days
- Regular price
- €123.53 ex VAT
- Sale price
- €123,53
- Regular price
-
Description
EXP200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter d | = | 55mm |
| A | = | 80mm |
| A1 | = | 51mm |
| B | = | 55.6mm |
| d1 | = | 83mm |
| H | = | 80mm |
| H1 | = | 30mm |
| H2 | = | 154mm |
| J | = | 236mm |
| L | = | 310mm |
| L1 | = | 85mm |
| N | = | 20mm |
| N1 | = | 38mm |
| S | = | 27.8mm |
| Dz | = | mm |
| Z | = | mm |
| G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 71.5 kN |
| Static load C0 | = | 44.8 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 22 Nm |
| Mass | = | 7.9 kg |
