SKU: EXPAE206L3-SNR

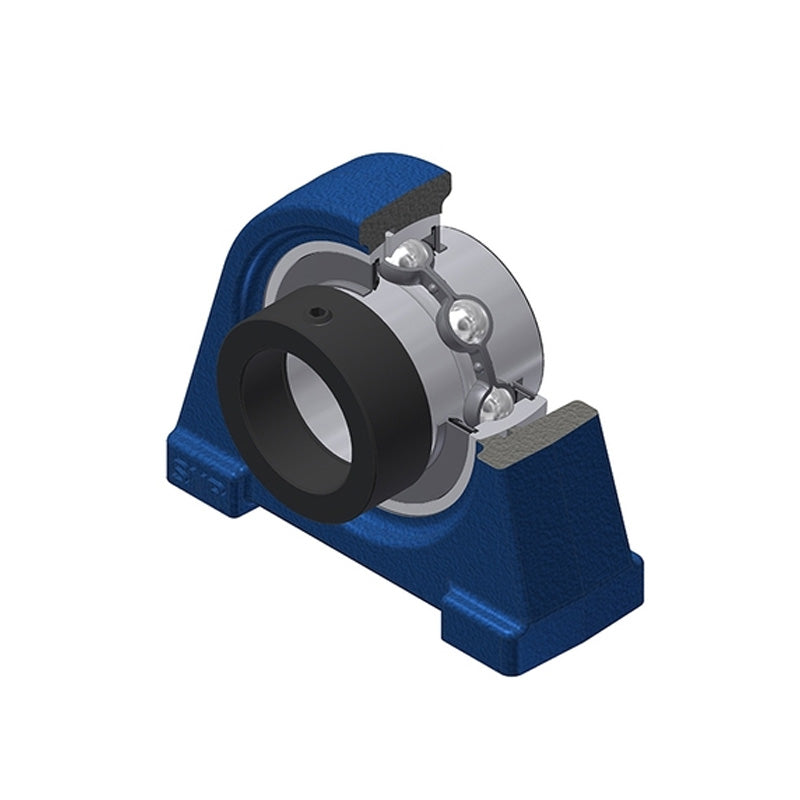

SNR EXPAE206L3 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 30mm Bore and Triple Lip Seal - Allow 2-3 Days
- Regular price
- €62.34 ex VAT
- Sale price
- €62,34
- Regular price
-
Not in stock
Quantity Price Breaks
3
€55.48
4
€52.37
9
€51.74
19
€51.12
49
€50.50
99
€49.87
499
€46.76
999
€46.13
1999
€45.51
2999
€44.88
4999
€43.64
SKU:
EXPAE206L3-SNR
SNR EXPAE206L3 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 30mm Bore and Triple Lip Seal - Allow 2-3 Days
- Regular price
- €62.34 ex VAT
- Sale price
- €62,34
- Regular price
-
Description
|
EXPAE200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
Technical
| --- | = | Dimensions |
| Shaft diameter | = | 30mm |
| A | = | 38mm |
| A1 | = | 25mm |
| B | = | 36.4mm |
| d1 | = | 44.1mm |
| E | = | 12.5mm |
| H | = | 42.9mm |
| H1 | = | 11mm |
| H2 | = | 82mm |
| J | = | 76.2mm |
| L | = | 98mm |
| L1 | = | 22mm |
| N | = | M10 |
| S | = | 18.2mm |
| G | = | R1/8 |
| --- | = | Load rating |
| Dynamic load C | = | 19.5 kN |
| Static load C0 | = | 11.2 kN |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| --- | = | Unit information |
| Recommended tightening torque for set screw | = | 11.5 Nm |
| Mass | = | 1.01 kg |
