SKU: EXPAE211-SNR

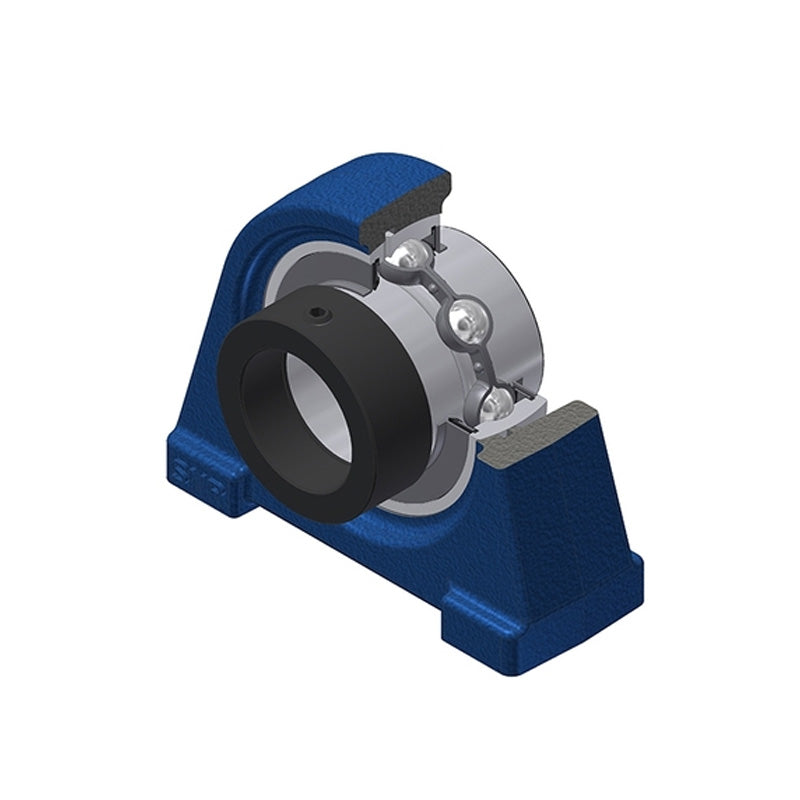

SNR EXPAE211 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 55mm Bore - Allow 2-3 Days
- Regular price
- €73.93 ex VAT
- Sale price
- €73,93
- Regular price
-
Not in stock
Quantity Price Breaks
3
€65.80
4
€62.10
9
€61.36
19
€60.62
49
€59.88
99
€59.14
499
€55.45
999
€54.71
1999
€53.97
2999
€53.23
4999
€51.75
SKU:
EXPAE211-SNR
SNR EXPAE211 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 55mm Bore - Allow 2-3 Days
- Regular price
- €73.93 ex VAT
- Sale price
- €73,93
- Regular price
-
Description
|
EXPAE200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
Technical
| --- | = | Dimensions |
| Shaft diameter | = | 55mm |
| A | = | 60mm |
| A1 | = | 35mm |
| B | = | 55.4mm |
| d1 | = | 74.5mm |
| E | = | 20mm |
| H | = | 64mm |
| H1 | = | 16mm |
| H2 | = | 125mm |
| J | = | 118mm |
| L | = | 150mm |
| L1 | = | 32mm |
| N | = | M16 |
| S | = | 27.7mm |
| G | = | R1/8 |
| --- | = | Load rating |
| Dynamic load C | = | 43.55 kN |
| Static load C0 | = | 29.2 kN |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| --- | = | Unit information |
| Recommended tightening torque for set screw | = | 22 Nm |
| Mass | = | 3.39 kg |
