SKU: EXPE218-SNR

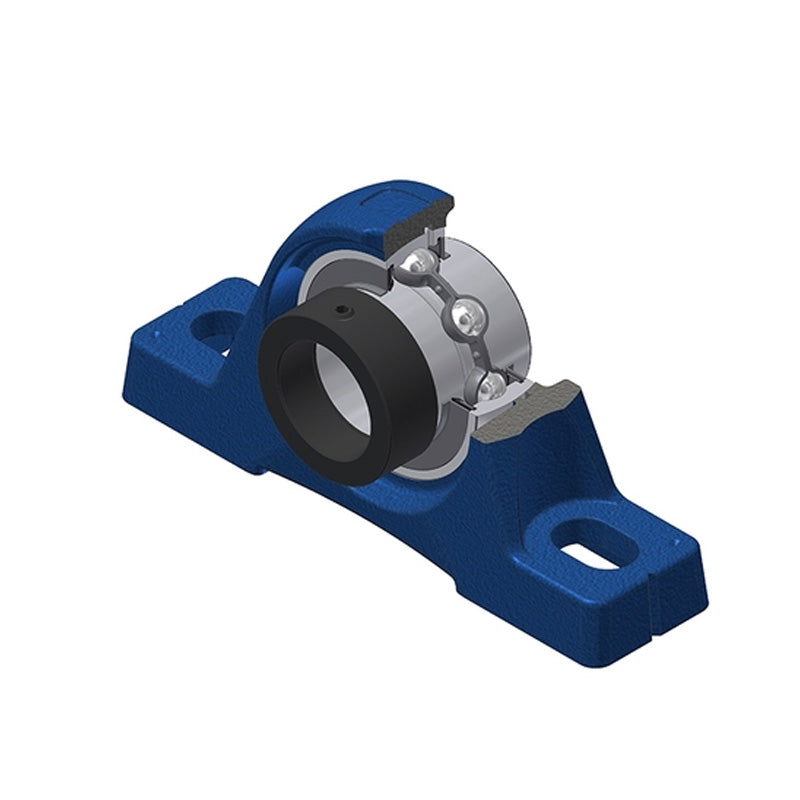

SNR EXPE218 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 90mm Eccentric Collar Insert - Allow 2-3 Days
- Regular price
- €280.97 ex VAT
- Sale price
- €280,97
- Regular price
-
Not in stock
Quantity Price Breaks
3
€250.06
4
€236.01
9
€233.21
19
€230.40
49
€227.59
99
€224.78
499
€210.73
999
€207.92
1999
€205.11
2999
€202.30
4999
€196.68
SKU:
EXPE218-SNR
SNR EXPE218 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 90mm Eccentric Collar Insert - Allow 2-3 Days
- Regular price
- €280.97 ex VAT
- Sale price
- €280,97
- Regular price
-
Description
EXPE200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter | = | 90mm |
| A | = | 85mm |
| A1 | = | 55mm |
| B | = | 55mm |
| d1 | = | 120mm |
| H | = | 101.6mm |
| H1 | = | 35mm |
| H2 | = | 200mm |
| J | = | 268mm |
| L | = | 330mm |
| L1 | = | 99mm |
| N | = | 27mm |
| N1 | = | 35mm |
| S | = | 24.5mm |
| G | = | R1/8 |
| --- | = | Load rating |
| Dynamic load C | = | 96 kN |
| Static load C0 | = | 71.5 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 33 Nm |
| Mass | = | 14 kg |
