SKU: EXT206-SNR

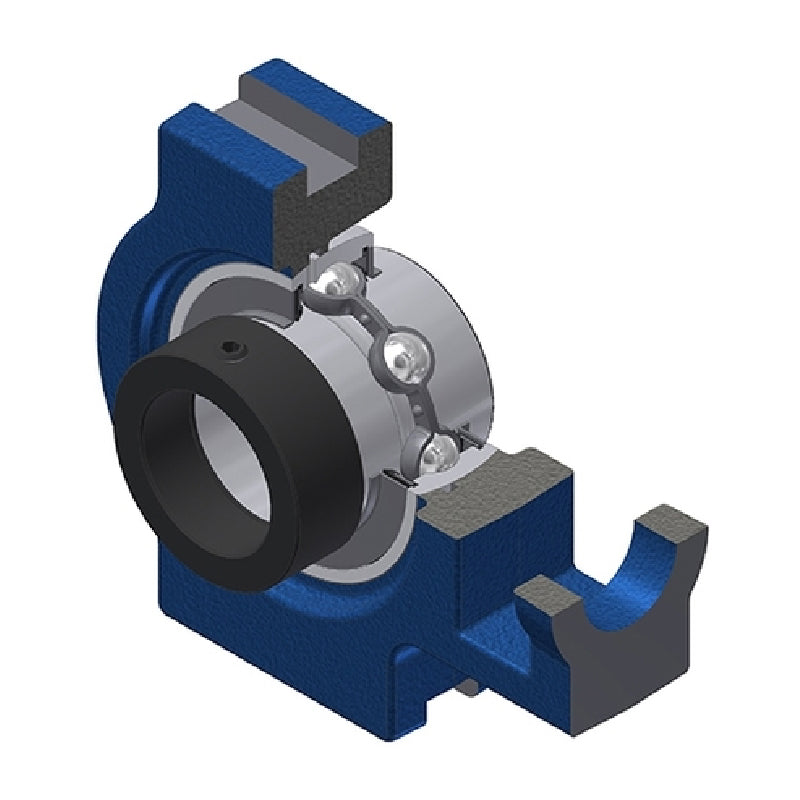

SNR EXT206 Metric Cast Iron Take Up Unit with Eccentric Collar Insert 30mm Bore - Allow 2-3 Days
- Regular price
- €41.42 ex VAT
- Sale price
- €41,42
- Regular price
-
Not in stock
Quantity Price Breaks
3
€36.86
4
€34.79
9
€34.38
19
€33.96
49
€33.55
99
€33.14
499
€31.07
999
€30.65
1999
€30.24
2999
€29.82
4999
€28.99
SKU:
EXT206-SNR
SNR EXT206 Metric Cast Iron Take Up Unit with Eccentric Collar Insert 30mm Bore - Allow 2-3 Days
- Regular price
- €41.42 ex VAT
- Sale price
- €41,42
- Regular price
-
Description
EXT200 Series Cast Iron Take Up Units: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter d | = | 30mm |
| A | = | 37mm |
| A1 | = | 12mm |
| A2 | = | 28mm |
| B1 | = | 48.3mm |
| d1 | = | 44.1mm |
| H | = | 102mm |
| H1 | = | 89mm |
| H2 | = | 56mm |
| L | = | 113mm |
| L1 | = | 70mm |
| L2 | = | 10mm |
| L3 | = | 57mm |
| N | = | 22mm |
| N1 | = | 16mm |
| N2 | = | 37mm |
| S | = | 18.2mm |
| G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 19.5 kN |
| Static load C0 | = | 11.2 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Mass | = | 1.31 kg |
