SKU: EXT212-SNR

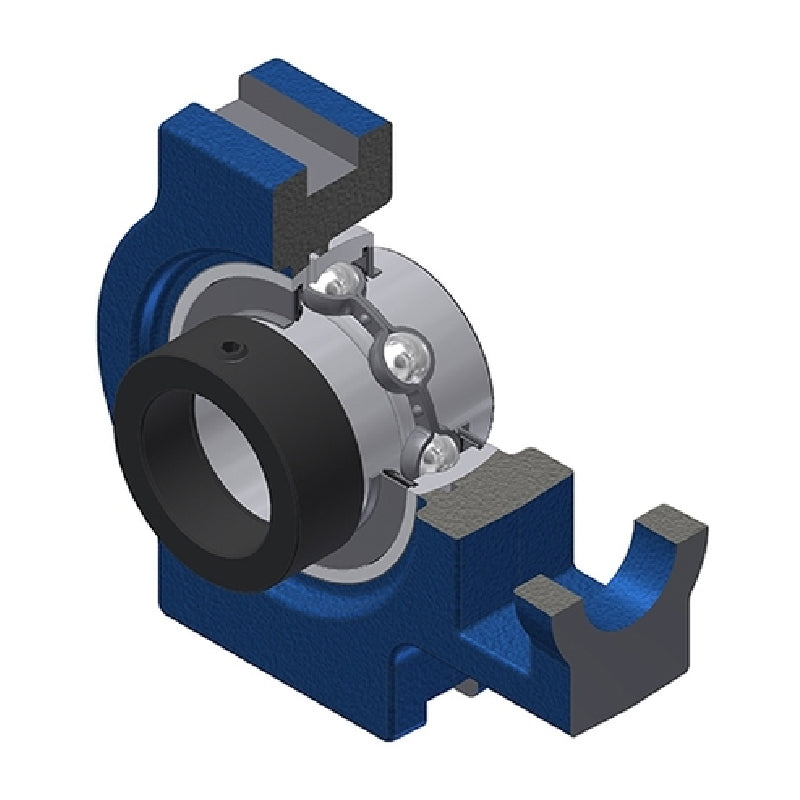

SNR EXT212 Metric Cast Iron Take Up Unit with Eccentric Collar Insert 60mm Bore - Allow 2-3 Days
- Regular price
- €86.35 ex VAT
- Sale price
- €86,35
- Regular price
-
Not in stock
Quantity Price Breaks
3
€76.85
4
€72.53
9
€71.67
19
€70.81
49
€69.94
99
€69.08
499
€64.76
999
€63.90
1999
€63.04
2999
€62.17
4999
€60.45
SKU:
EXT212-SNR
SNR EXT212 Metric Cast Iron Take Up Unit with Eccentric Collar Insert 60mm Bore - Allow 2-3 Days
- Regular price
- €86.35 ex VAT
- Sale price
- €86,35
- Regular price
-
Description
EXT200 Series Cast Iron Take Up Units: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter d | = | 60mm |
| A | = | 64mm |
| A1 | = | 22mm |
| A2 | = | 42mm |
| B1 | = | 77.7mm |
| d1 | = | 82mm |
| H | = | 146mm |
| H1 | = | 130mm |
| H2 | = | 102mm |
| L | = | 194mm |
| L1 | = | 119mm |
| L2 | = | 19mm |
| L3 | = | 102mm |
| N | = | 35mm |
| N1 | = | 32mm |
| N2 | = | 64mm |
| S | = | 30.9mm |
| G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 52.5 kN |
| Static load C0 | = | 32.8 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Mass | = | 5.07 kg |
