SKU: EXT214-SNR

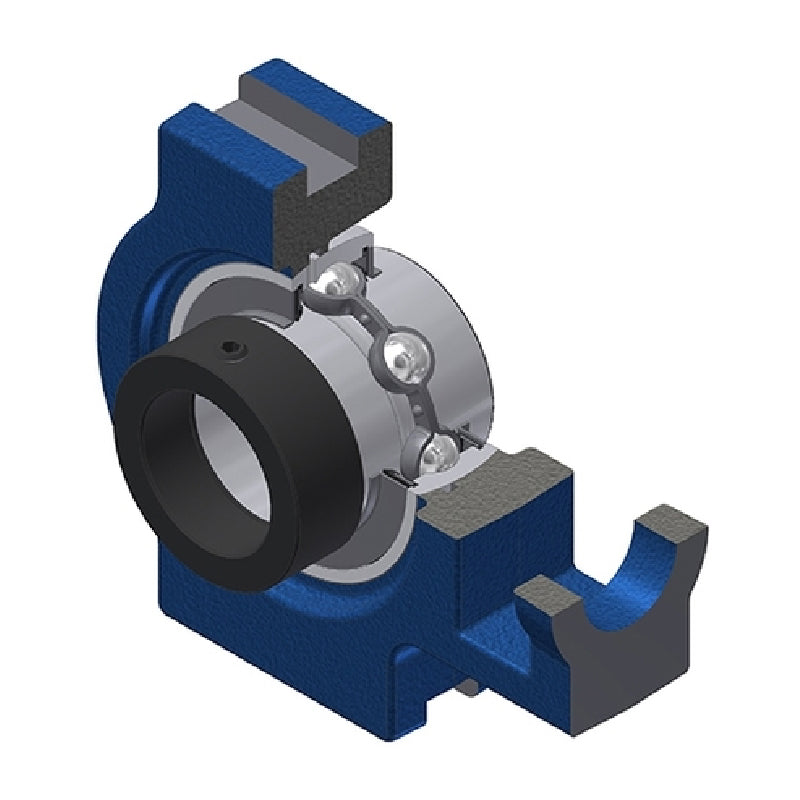

SNR EXT214 Metric Cast Iron Take Up Unit with Eccentric Collar Insert 70mm Bore - Allow 2-3 Days
- Regular price
- €136.25 ex VAT
- Sale price
- €136,25
- Regular price
-
Not in stock
Quantity Price Breaks
3
€121.26
4
€114.45
9
€113.09
19
€111.73
49
€110.36
99
€109.00
499
€102.19
999
€100.83
1999
€99.46
2999
€98.10
4999
€95.38
SKU:
EXT214-SNR
SNR EXT214 Metric Cast Iron Take Up Unit with Eccentric Collar Insert 70mm Bore - Allow 2-3 Days
- Regular price
- €136.25 ex VAT
- Sale price
- €136,25
- Regular price
-
Description
EXT200 Series Cast Iron Take Up Units: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter d | = | 70mm |
| A | = | 70mm |
| A1 | = | 26mm |
| A2 | = | 46mm |
| B1 | = | 85.7mm |
| d1 | = | 96.8mm |
| H | = | 167mm |
| H1 | = | 151mm |
| H2 | = | 111mm |
| L | = | 224mm |
| L1 | = | 137mm |
| L2 | = | 21mm |
| L3 | = | 121mm |
| N | = | 41mm |
| N1 | = | 32mm |
| N2 | = | 70mm |
| S | = | 34.1mm |
| G | = | M10x1 |
| --- | = | Load rating |
| Dynamic load C | = | 62 kN |
| Static load C0 | = | 45 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Mass | = | 7.37 kg |
