SKU: EXT216-SNR

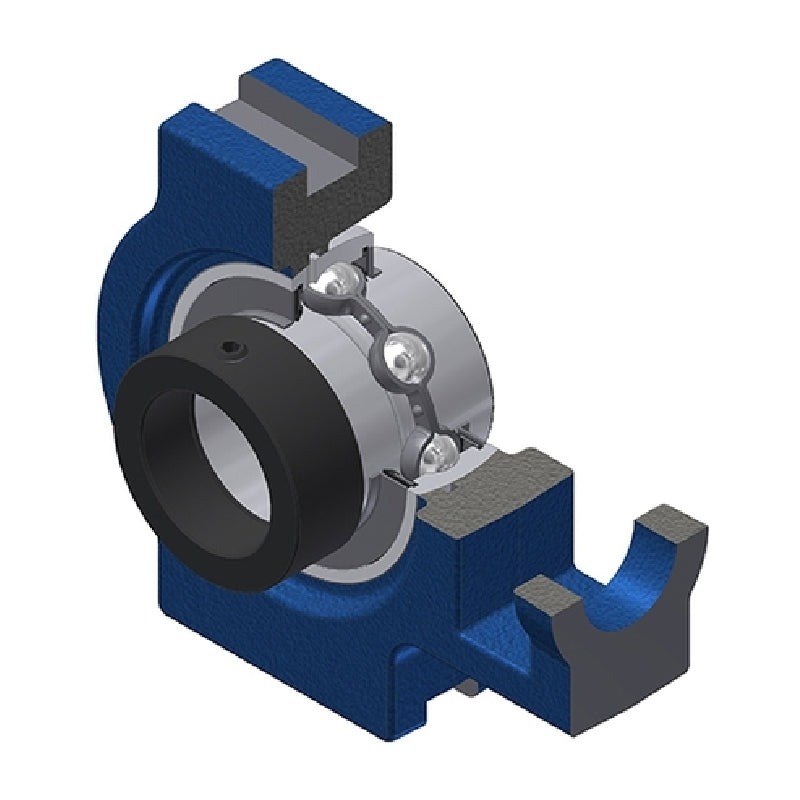

SNR EXT216 Metric Cast Iron Take Up Unit with Eccentric Collar Insert 80mm Bore - Allow 2-3 Days
- Regular price
- €184.38 ex VAT
- Sale price
- €184,38
- Regular price
-
Not in stock
Quantity Price Breaks
3
€164.10
4
€154.88
9
€153.04
19
€151.19
49
€149.35
99
€147.50
499
€138.29
999
€136.44
1999
€134.60
2999
€132.75
4999
€129.07
SKU:
EXT216-SNR
SNR EXT216 Metric Cast Iron Take Up Unit with Eccentric Collar Insert 80mm Bore - Allow 2-3 Days
- Regular price
- €184.38 ex VAT
- Sale price
- €184,38
- Regular price
-
Description
EXT200 Series Cast Iron Take Up Units: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter d | = | 80mm |
| A | = | 70mm |
| A1 | = | 26mm |
| A2 | = | 51mm |
| B1 | = | 95.2mm |
| d1 | = | 110mm |
| H | = | 184mm |
| H1 | = | 165mm |
| H2 | = | 111mm |
| L | = | 235mm |
| L1 | = | 140mm |
| L2 | = | 21mm |
| L3 | = | 121mm |
| N | = | 41mm |
| N1 | = | 32mm |
| N2 | = | 70mm |
| S | = | 37.3mm |
| G | = | M10x1 |
| --- | = | Load rating |
| Dynamic load C | = | 72.5 kN |
| Static load C0 | = | 54.2 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Mass | = | 8.52 kg |
