SKU: F10-18-EU

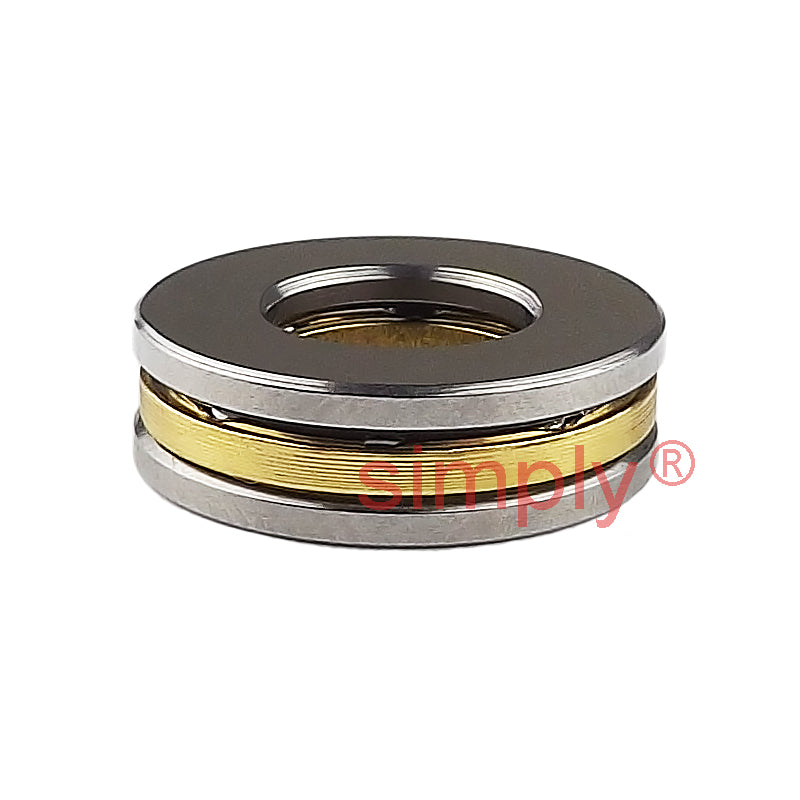

F10-18 Budget Single Thrust Ball Bearing 10x18x5.5mm
- Regular price
- €4.47 ex VAT
- Sale price
- €4,47
- Regular price
-
In stock
Quantity Price Breaks
10
€3.98
19
€3.75
29
€3.71
39
€3.67
49
€3.62
74
€3.58
99
€3.35
199
€3.31
249
€3.26
499
€3.22
999
€3.13
SKU:
F10-18-EU
F10-18 Budget Single Thrust Ball Bearing 10x18x5.5mm
- Regular price
- €4.47 ex VAT
- Sale price
- €4,47
- Regular price
-
Description
Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and a housing washer and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
Technical
| d | = | 10mm (+/-0.008mm) |
| D | = | 18mm (+0/-0.011mm) |
| H | = | 5.5mm (+0/-0.075mm) |
| r1r2 min | = | 0.3mm |
| Dynamic load C | = | 0.78 kN |
| Static load Co | = | 0.7 kN |
| Weight | = | 0.006 kg |
| Limiting Speed | = | 14000 rpm |
| Lubrication | = | Light Oil AF2 |
| Material | = | Balls & |
| Washers, Chrome Steel, Brass or 304 Stainless Steel Cage | = | N/A |
