SKU: F10-18G-EU
F10-18G Budget Single Thrust Ball Bearing with Grooved Washers 10x18x5.5mm
- Regular price
- €3.62 ex VAT
- Sale price
- €3,62
- Regular price
-
In stock
Quantity Price Breaks
10
€3.22
19
€3.04
29
€3.00
39
€2.97
49
€2.93
74
€2.90
99
€2.72
199
€2.68
249
€2.64
499
€2.61
999
€2.53
SKU:
F10-18G-EU
F10-18G Budget Single Thrust Ball Bearing with Grooved Washers 10x18x5.5mm
- Regular price
- €3.62 ex VAT
- Sale price
- €3,62
- Regular price
-
Description

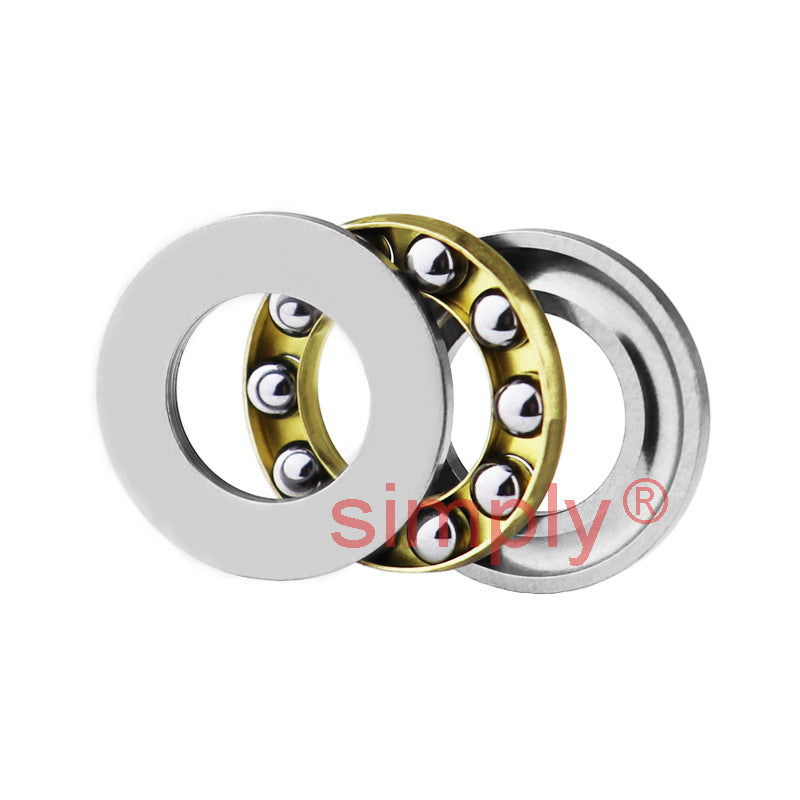

Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have angular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
Technical
| d | = | 10mm (+0/-0.05mm) |
| D | = | 18mm (+0.005/-0.020mm) |
| H | = | 5.5mm (+0/-0.075mm) |
| d1 | = | 10.2mm (+0/-0.011mm) |
| D1 | = | 17.8mm (+0/-0.008mm) |
| r1r2 min | = | 0.3mm |
| Dynamic load C | = | 2.422 kN |
| Static load Co | = | 3.423 kN |
| Limiting speed | = | 14000 rpm |
| Weight | = | 0.006 kg |
| Material | = | Balls & |
| Washers, Chrome Steel, Brass or 304 Stainless Steel Cage | = | N/A |
