SKU: F140B+F140B+F140T-MB
Major Branded F140B/F140B Pilot Bored Tyre Drive Coupling Assembly with Natural Rubber Tyre
- Regular price
- €552.24 ex VAT
- Sale price
- €552,24
- Regular price
-
Quantity Price Breaks
Major Branded F140B/F140B Pilot Bored Tyre Drive Coupling Assembly with Natural Rubber Tyre
- Regular price
- €552.24 ex VAT
- Sale price
- €552,24
- Regular price
-
Description
Branded Pilot Bore Natural Rubber Tyre Drive Coupling Assembly with Natural Rubber Tyre: This type of coupling can accommodate simultaneous maximum misalignment in all planes without imposing undue loads on adjacent bearings.

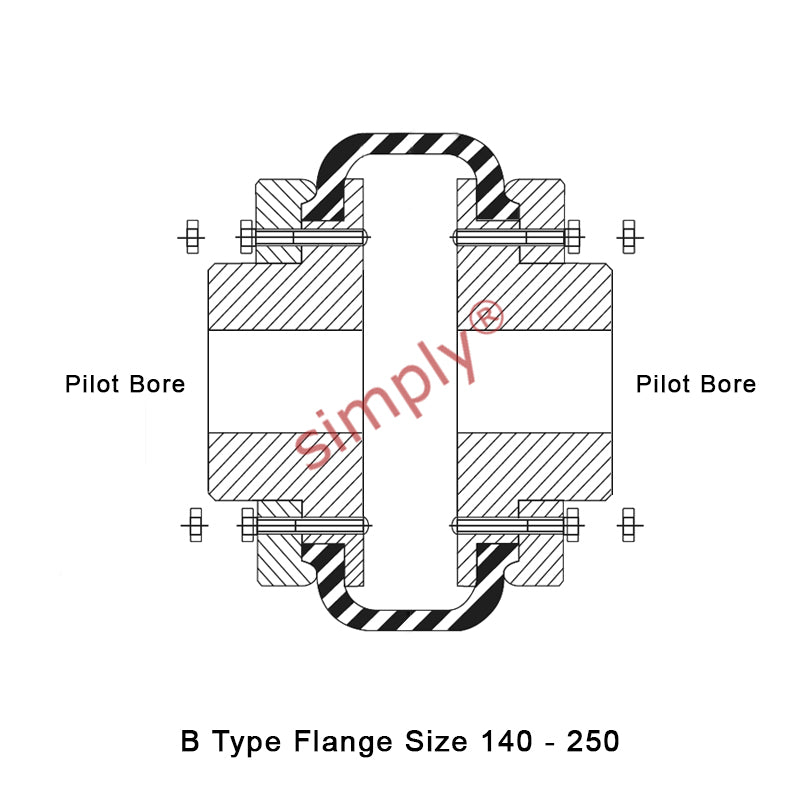

Supplied as a complete coupling assembly with both flanges pilot bored BB type. These flanges require machining the bores to suit your application will be required. The assembly comprises of 2 steel flanges and a matching tyre element.
The natural rubber compound is suitable for use in ambient temperatures of -50 deg C to +50 deg C. The inserts has excellent shock absorbing properties of the insert reduces vibration and torsional oscillations.
Do you need a Fire Resistant Antistatic (F.R.A.S) rubber tyre. See links below.

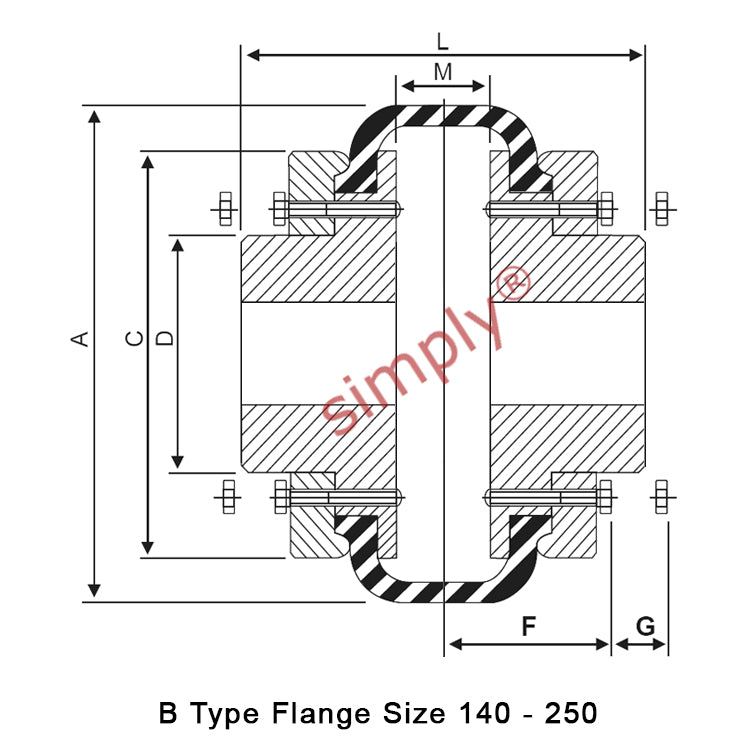

Technical
| B Type - Max Bore | = | 130mm |
| B Type - Flange A | = | 359mm |
| B Type - Flange B | = | 178mm |
| B Type - Flange C | = | 311mm |
| B Type - Flange E | = | 16mm |
| B Type - Flange F | = | 110.5mm |
| B Type - Flange D | = | 94mm |
| B Type - Clamping Screws | = | M20 |
| B Type - Flange Weight | = | 31.55kg |
| B Type - Inertia | = | 0.254kgm2 |
| B Type - Flange Face Spacing | = | 32mm |
| B Type - Gap Between Tyre Ends | = | 5mm |
| B Type - Nominal Torque | = | 2325 Nm |
| B Type - Max Speed | = | 1800 rev/min |
| B Type - Max Par Mis | = | 3.7mm |
| B Type - Max End Float | = | 4.6mm |
| B Type - Screw Size | = | M12 |
| B Type - Tigtening Torque | = | 55 Nm |
| Max Power at 100 rpm | = | 24.3 kW |
| Max Power at 200 rpm | = | 48.7 kW |
| Max Power at 300 rpm | = | 73 kW |
| Max Power at 400 rpm | = | 97.4 kW |
| Max Power at 500 rpm | = | 122 kW |
| Max Power at 600 rpm | = | 146 kW |
| Max Power at 700 rpm | = | 170 kW |
| Max Power at 720 rpm | = | 175 kW |
| Max Power at 800 rpm | = | 195 kW |
| Max Power at 900 rpm | = | 219 kW |
| Max Power at 960 rpm | = | 234 kW |
| Max Power at 1000 rpm | = | 243 kW |
| Max Power at 1200 rpm | = | 292 kW |
| Max Power at 1400 rpm | = | 341 kW |
| Max Power at 1440 rpm | = | 351 kW |
| Max Power at 1600 rpm | = | 390 kW |
| Max Power at 1800 rpm | = | 438 kW |
| Maximum Speed | = | 1800 rev/min |
| Nominal Torque | = | 2325 Nm TKN |
| Maximum Torque | = | 5642 Nm TK MAX |
| Torsional Stiffness | = | 470 Nm/& |
| deg | = | |
| Max. Parallel Misalignment | = | 3.7mm |
| Maximum End Float | = | 4.6mm & |
| plusmn | = | |
| Approximate Mass | = | 2.6kg |
| Alternating Torque | = | 940 & |
| plusmn | = | Nm @ 10Hz TKW |
| Resonance Factor V B | = | 7 |
| Damping Coefficient & | = | Oslash |
| = | 0.9 |
