SKU: F4-9G-EU
F4-9G Budget Single Thrust Ball Bearing with Grooved Washers 4x9x4mm
- Regular price
- €3.10 ex VAT
- Sale price
- €3,10
- Regular price
-
In stock
Quantity Price Breaks
10
€2.76
19
€2.60
29
€2.57
39
€2.54
49
€2.51
74
€2.48
99
€2.33
199
€2.29
249
€2.26
499
€2.23
999
€2.17
SKU:
F4-9G-EU

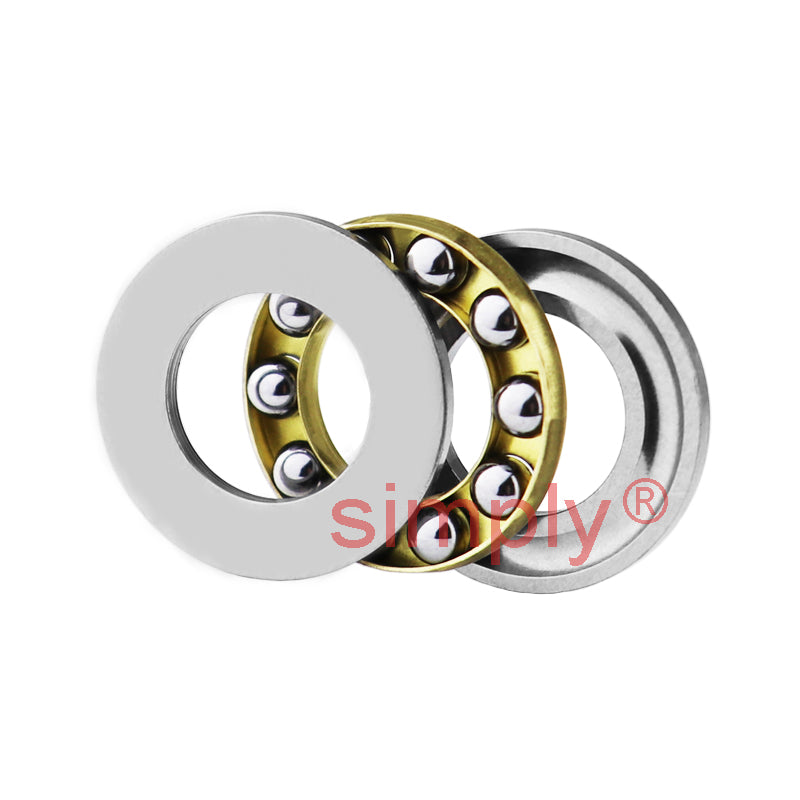

F4-9G Budget Single Thrust Ball Bearing with Grooved Washers 4x9x4mm
- Regular price
- €3.10 ex VAT
- Sale price
- €3,10
- Regular price
-
Description
Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have angular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly

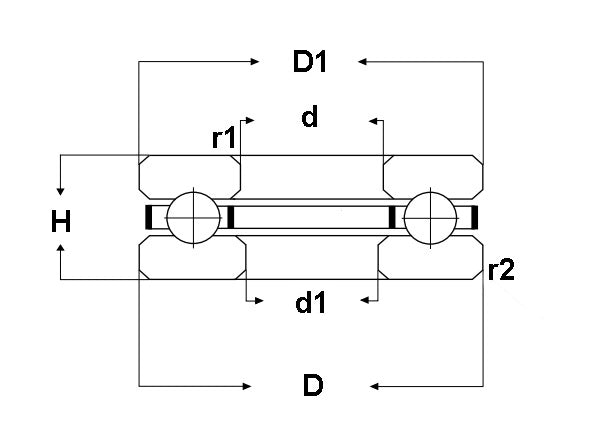

Technical
| d | = | 4mm (+0/-0.05mm) |
| D | = | 9mm (+0.005/-0.020mm) |
| H | = | 4mm (+0/-0.075mm) |
| d1 | = | 4.2mm (+0/-0.011mm) |
| D1 | = | 8.8mm (+0/-0.008mm) |
| r1r2 min | = | 0.2mm |
| Dynamic load C | = | 0.922 kN |
| Static load Co | = | 0.912 kN |
| Limiting speed | = | 22000 rpm |
| Weight | = | 0.002 kg |
| Material | = | Balls & |
| Washers, Chrome Steel, Brass or 304 Stainless Steel Cage | = | N/A |
