SKU: F6-12-EU

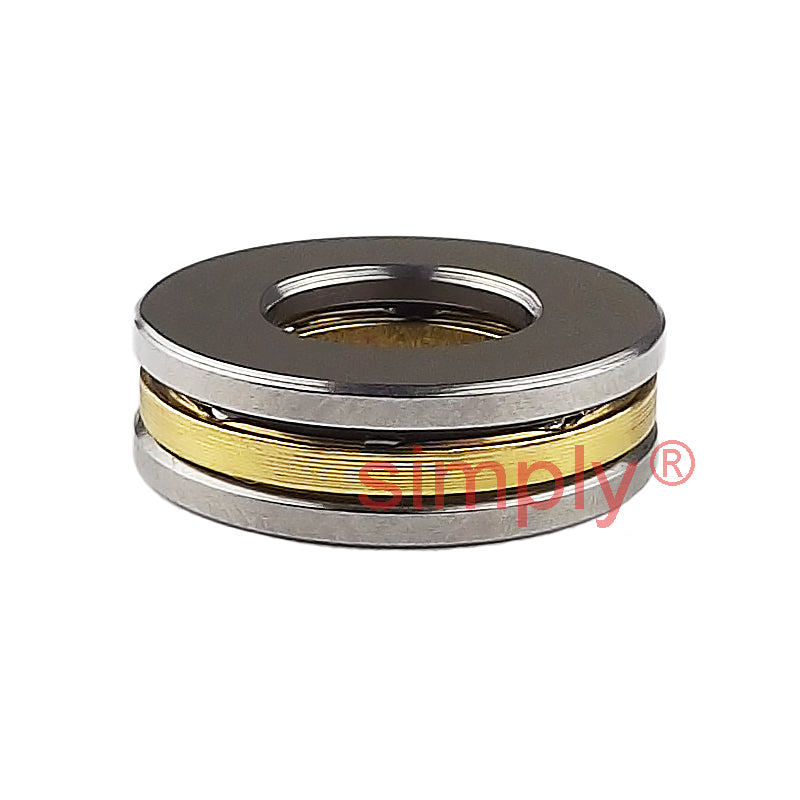

F6-12 Budget Single Thrust Ball Bearing 6x12x4.5mm
- Regular price
- €6.03 ex VAT
- Sale price
- €6,03
- Regular price
-
In stock
Quantity Price Breaks
10
€5.37
19
€5.07
29
€5.00
39
€4.94
49
€4.88
74
€4.82
99
€4.52
199
€4.46
249
€4.40
499
€4.34
999
€4.22
SKU:
F6-12-EU
F6-12 Budget Single Thrust Ball Bearing 6x12x4.5mm
- Regular price
- €6.03 ex VAT
- Sale price
- €6,03
- Regular price
-
Description
Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and a housing washer and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
Technical
| d | = | 6mm (+/-0.008mm) |
| D | = | 12mm (+0/-0.011mm) |
| H | = | 4.5mm (+0/-0.075mm) |
| r1r2 min | = | 0.15mm |
| Dynamic load C | = | 0.38 kN |
| Static load Co | = | 0.3 kN |
| Weight | = | 0.0025 kg |
| Limiting Speed | = | 18000 rpm |
| Lubrication | = | Light Oil AF2 |
| Material | = | Balls & |
| Washers, Chrome Steel, Brass or 304 Stainless Steel Cage | = | N/A |
