SKU: F6-13G-EU
F6-13G Budget Single Thrust Ball Bearing with Grooved Washers 6x13x5mm
- Regular price
- €3.93 ex VAT
- Sale price
- €3,93
- Regular price
-
In stock
Quantity Price Breaks
10
€3.50
19
€3.30
29
€3.26
39
€3.22
49
€3.18
74
€3.14
99
€2.95
199
€2.91
249
€2.87
499
€2.83
999
€2.75
SKU:
F6-13G-EU
F6-13G Budget Single Thrust Ball Bearing with Grooved Washers 6x13x5mm
- Regular price
- €3.93 ex VAT
- Sale price
- €3,93
- Regular price
-
Description

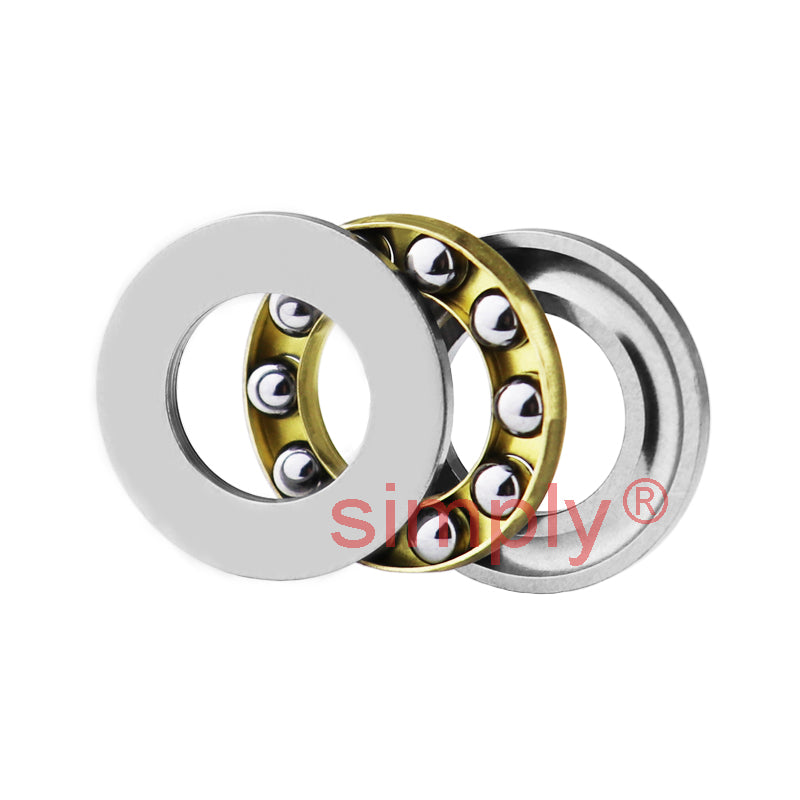

Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have angular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
Technical
| d | = | 6mm (+0/-0.05mm) |
| D | = | 13mm (+0.005/-0.020mm) |
| H | = | 5mm (+0/-0.075mm) |
| d1 | = | 6.2mm (+0/-0.011mm) |
| D1 | = | 12.8mm (+0/-0.008mm) |
| r1r2 min | = | 0.2mm |
| Dynamic load C | = | 1.785 kN |
| Static load Co | = | 2.177 kN |
| Limiting speed | = | 18000 rpm |
| Weight | = | 0.002 kg |
| Material | = | Balls & |
| Washers, Chrome Steel, Brass or 304 Stainless Steel Cage | = | N/A |
