SKU: F7-15-EU

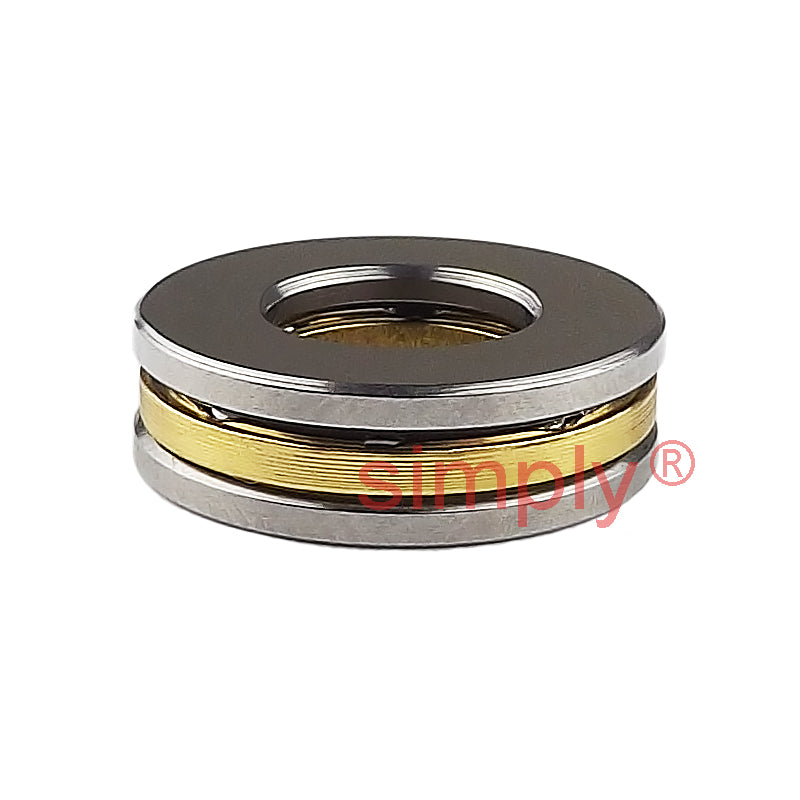

F7-15 Budget Single Thrust Ball Bearing 7x15x5mm
- Regular price
- €3.62 ex VAT
- Sale price
- €3,62
- Regular price
-
In stock
Quantity Price Breaks
10
€3.22
19
€3.04
29
€3.00
39
€2.97
49
€2.93
74
€2.90
99
€2.72
199
€2.68
249
€2.64
499
€2.61
999
€2.53
SKU:
F7-15-EU
F7-15 Budget Single Thrust Ball Bearing 7x15x5mm
- Regular price
- €3.62 ex VAT
- Sale price
- €3,62
- Regular price
-
Description
Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and a housing washer and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly

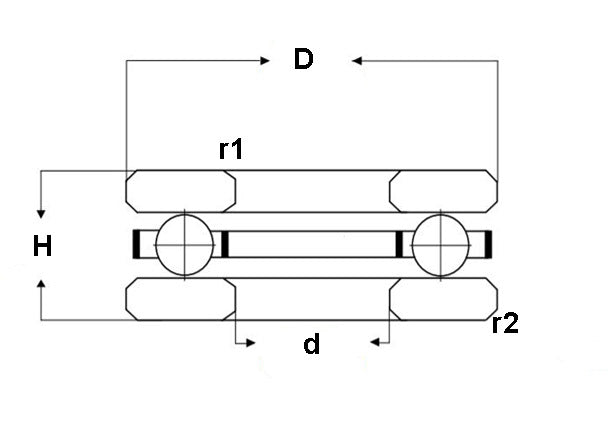

Technical
| d | = | 7mm(+0/0.008mm) |
| D | = | 15mm(+0/-0.011mm) |
| H | = | 5mm(+0/-0.075mm) |
| Dynamic load C | = | 0.77 kN |
| r1r2 min | = | 0.2mm |
| Static load Co | = | 0.62 kN |
| Weight | = | 0.003 kg |
| Lubrication | = | Light Oil AF2 |
| Material | = | Balls & |
| Washers, Chrome Steel, Brass or 304 Stainless Steel Cage | = | N/A |
