SKU: F70H+F70H+F70T-FRAS-MB
Major Branded F70H/F70H Outer Facing Taper Bores Type Tyre Drive Coupling Assembly with Fire Resistant Antistatic (F.R.A.S) Tyre
- Regular price
- €142.28 ex VAT
- Sale price
- €142,28
- Regular price
-
Quantity Price Breaks
Major Branded F70H/F70H Outer Facing Taper Bores Type Tyre Drive Coupling Assembly with Fire Resistant Antistatic (F.R.A.S) Tyre
- Regular price
- €142.28 ex VAT
- Sale price
- €142,28
- Regular price
-
Description
Branded Outer Tapered Locking Bush Type Tyre Drive Coupling Assembly with Fire Resistant Antistatic (F.R.A.S) Tyre: This type of coupling can accommodate simultaneous maximum misalignment in all planes without imposing undue loads on adjacent bearings.

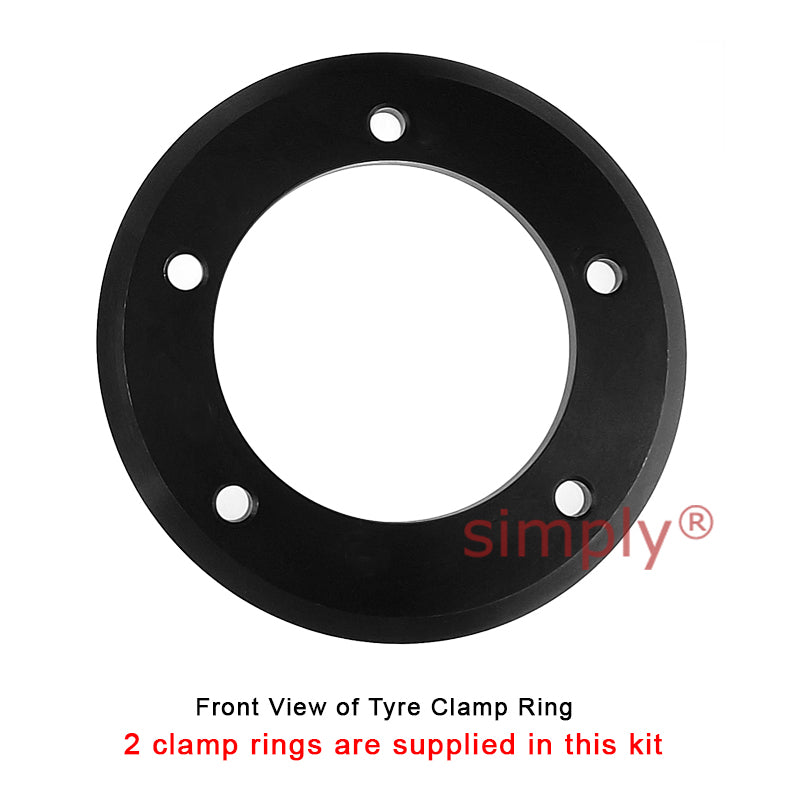

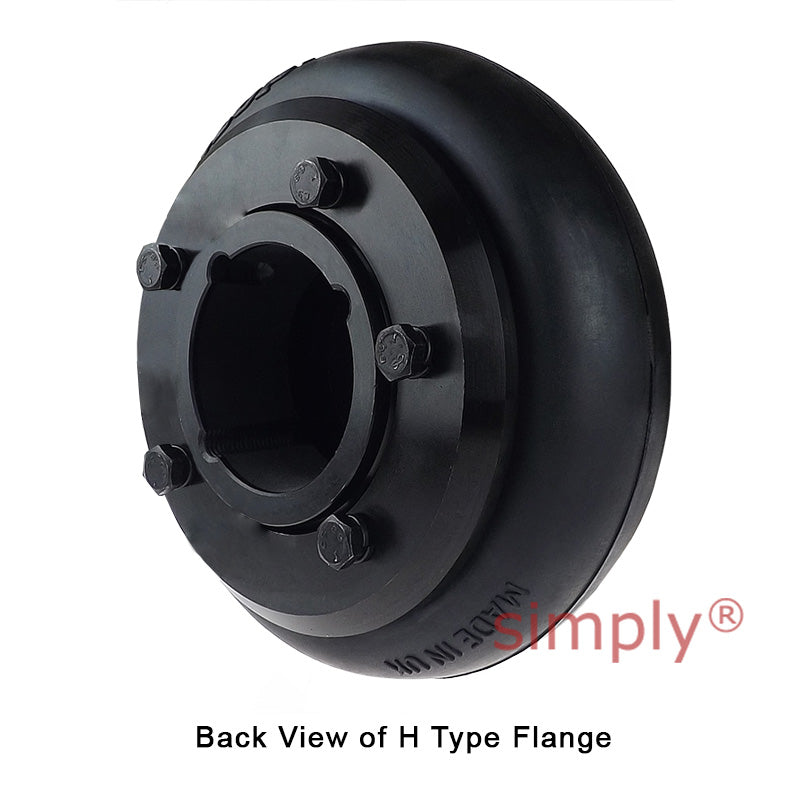

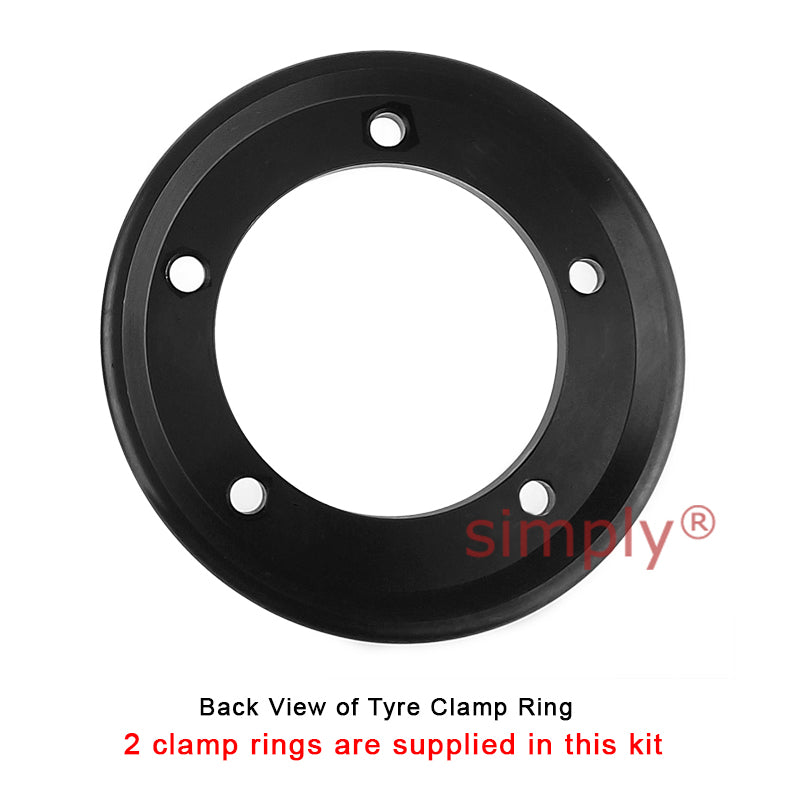

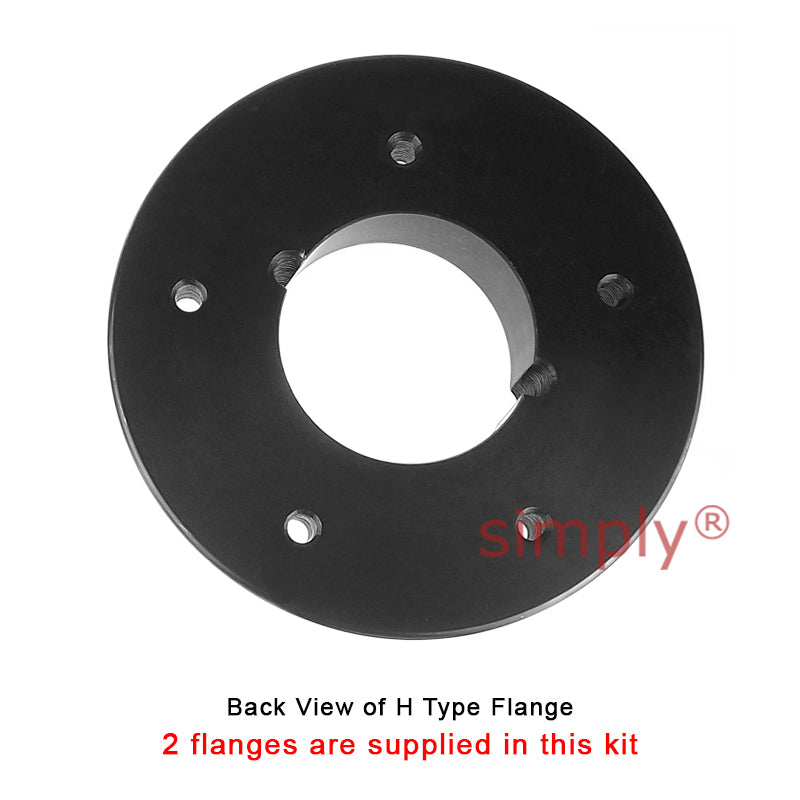

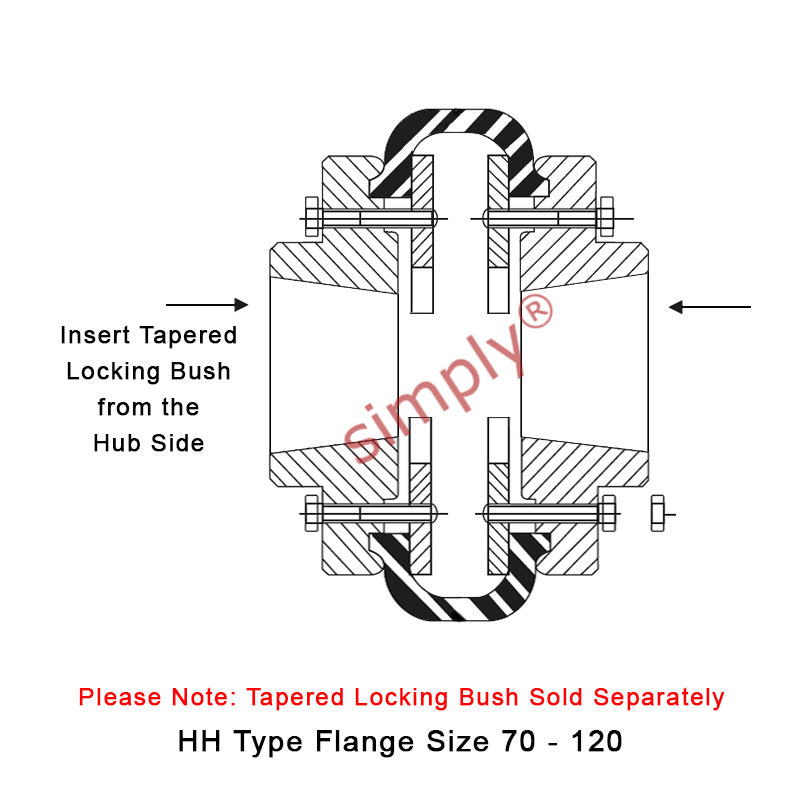

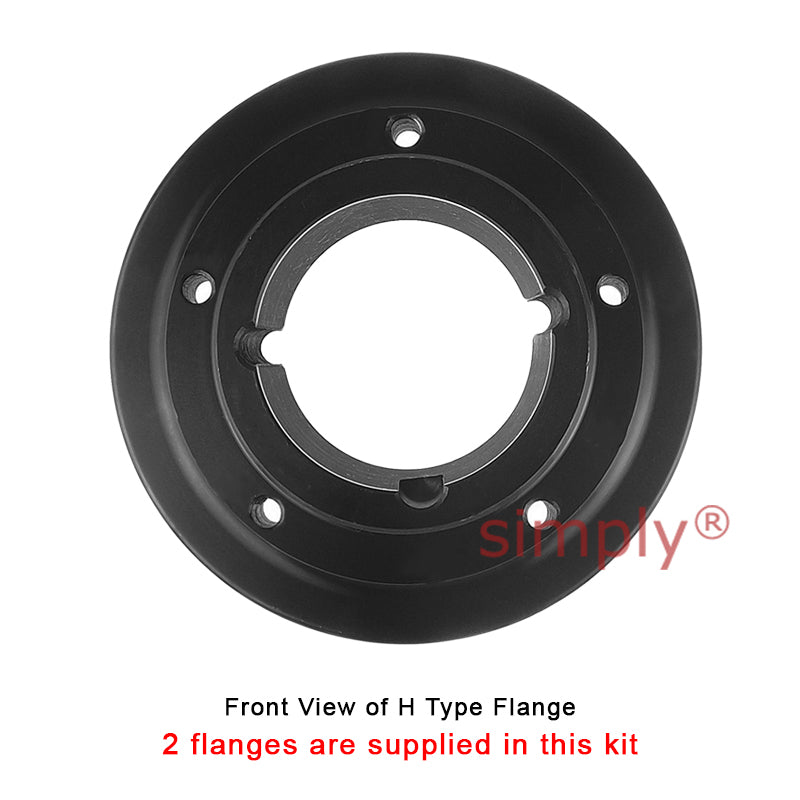

Supplied as a complete coupling assembly (except for tapered locking bushes as you will need to select the shaft size for your application). The assembly comprises of 2 steel flanges and a matching chloroprene rubber fire resistance and anti-static properties (F.R.A.S) tyre element. This coupling is the H type where the larger diameter of the taper bore is on the opposite side to the tyre clamping flange.
The chloroprene rubber compound is suitable for use in temperatures of -15 deg C to +70 deg C and has fire resistance and anti-static properties (F.R.A.S). If it doesn't say F.R.A.S it's not Fire Resistant Antistatic. The inserts has excellent shock absorbing properties of the insert reduces vibration and torsional oscillations.
Technical
| H Type - Bush | = | 1610 < |
| a href=" | = | advanced_search_result.php?keywords=taper+lock+bush+1610" |
| > | = | [Click Here]< |
| /a> | = | |
| H Type - Max Bore | = | 42mm |
| H Type - Max Bore | = | 1-5/8 inch |
| H Type - Flange A | = | 187mm |
| H Type - Flange B | = | 80mm |
| H Type - Flange C | = | 144mm |
| H Type - Flange E | = | 11.5mm |
| H Type - Flange G | = | 38mm |
| H Type - Flange F | = | 42mm |
| H Type - Flange D | = | 25mm |
| H Type - Flange Weight | = | 2.66kg |
| H Type - Inertia | = | 0.009kgm2 |
| H Type - Flange Face Spacing | = | 23mm |
| H Type - Gap Between Tyre Ends | = | 3mm |
| H Type - Nominal Torque | = | 250 Nm |
| H Type - Max Speed | = | 3600 rev/min |
| H Type - Max Par Mis | = | 1.9mm |
| H Type - Max End Float | = | 2.3mm |

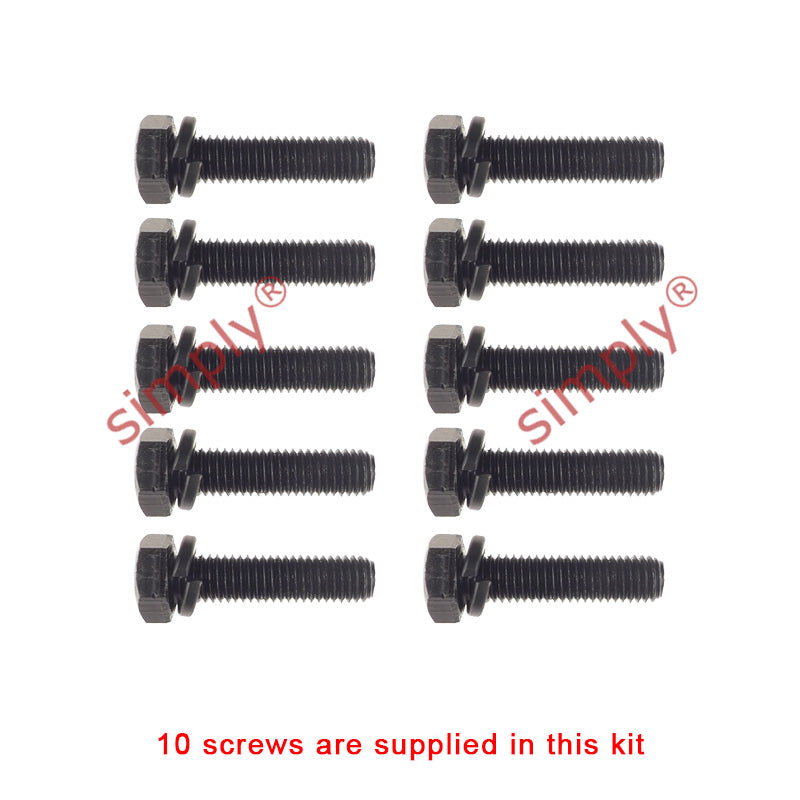

| H Type - Screw Size | = | M8 |
| H Type - Tigtening Torque | = | 24 Nm |
| Max Power at 100 rpm | = | 2.62 kW |
| Max Power at 200 rpm | = | 5.24 kW |
| Max Power at 300 rpm | = | 7.85 kW |
| Max Power at 400 rpm | = | 10.5 kW |
| Max Power at 500 rpm | = | 13.1 kW |
| Max Power at 600 rpm | = | 15.7 kW |
| Max Power at 700 rpm | = | 18.3 kW |
| Max Power at 720 rpm | = | 18.8 kW |
| Max Power at 800 rpm | = | 20.9 kW |
| Max Power at 900 rpm | = | 23.6 kW |
| Max Power at 960 rpm | = | 25.1 kW |
| Max Power at 1000 rpm | = | 26.2 kW |
| Max Power at 1200 rpm | = | 31.4 kW |
| Max Power at 1400 rpm | = | 36.6 kW |
| Max Power at 1440 rpm | = | 37.7 kW |
| Max Power at 1600 rpm | = | 41.9 kW |
| Max Power at 1800 rpm | = | 47.1 kW |
| Max Power at 2000 rpm | = | 52.4 kW |
| Max Power at 2200 rpm | = | 57.6 kW |
| Max Power at 2400 rpm | = | 62.8 kW |
| Max Power at 2600 rpm | = | 68.1 kW |
| Maximum Speed | = | 3600 rev/min |
| Nominal Torque | = | 250 Nm TKN |
| Maximum Torque | = | 487 Nm TK MAX |
| Torsional Stiffness | = | 41 Nm/& |
| deg | = | |
| Max. Parallel Misalignment | = | 1.9mm |
| Maximum End Float | = | 2.3mm & |
| plusmn | = | |
| Approximate Mass | = | 0.7kg |
| Alternating Torque | = | 81 & |
| plusmn | = | Nm @ 10Hz TKW |
| Resonance Factor V B | = | 7 |
| Damping Coefficient & | = | Oslash |
| = | 0.9 |
