SKU: F8-16-EU

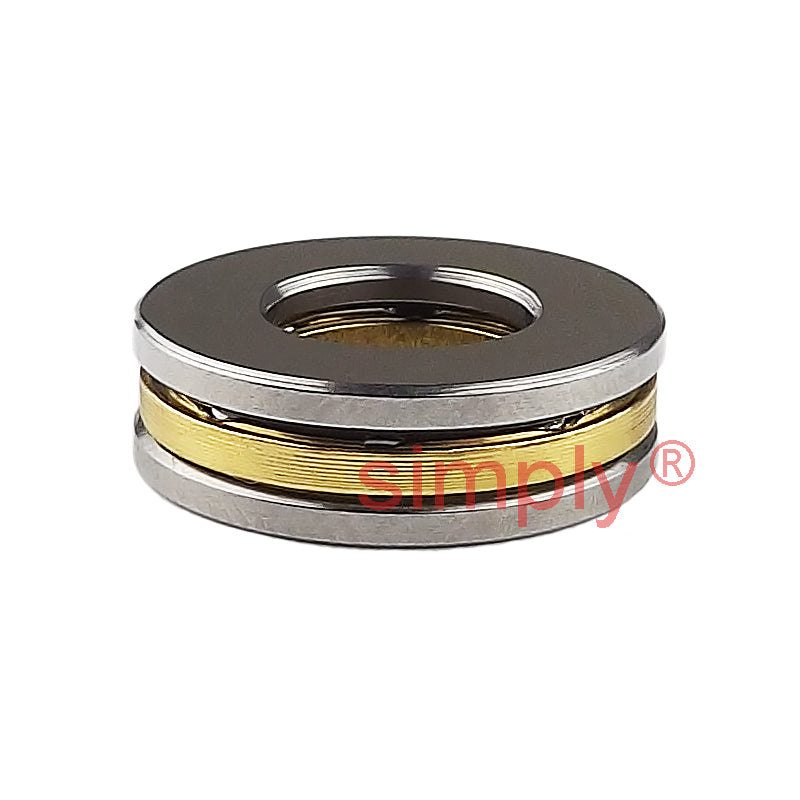

F8-16 Budget Single Thrust Ball Bearing 8x16x5mm
- Regular price
- €3.82 ex VAT
- Sale price
- €3,82
- Regular price
-
In stock
Quantity Price Breaks
10
€3.40
19
€3.21
29
€3.17
39
€3.13
49
€3.09
74
€3.06
99
€2.87
199
€2.83
249
€2.79
499
€2.75
999
€2.67
SKU:
F8-16-EU
F8-16 Budget Single Thrust Ball Bearing 8x16x5mm
- Regular price
- €3.82 ex VAT
- Sale price
- €3,82
- Regular price
-
Description
Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and a housing washer and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
Technical
| d | = | 8mm (+/-0.008mm) |
| D | = | 16mm (+0/-0.011mm) |
| H | = | 5mm (+0/-0.075mm) |
| r1r2 min | = | 0.3mm |
| Dynamic load C | = | 3.844 kN |
| Static load Co | = | 4.89 kN |
| Weight | = | 0.005 kg |
| Limiting Speed | = | 16000 rpm |
| Lubrication | = | Light Oil AF2 |
| Material | = | Balls & |
| Washers, Chrome Steel, Brass or 304 Stainless Steel Cage | = | N/A |
