SKU: F9-17G-EU

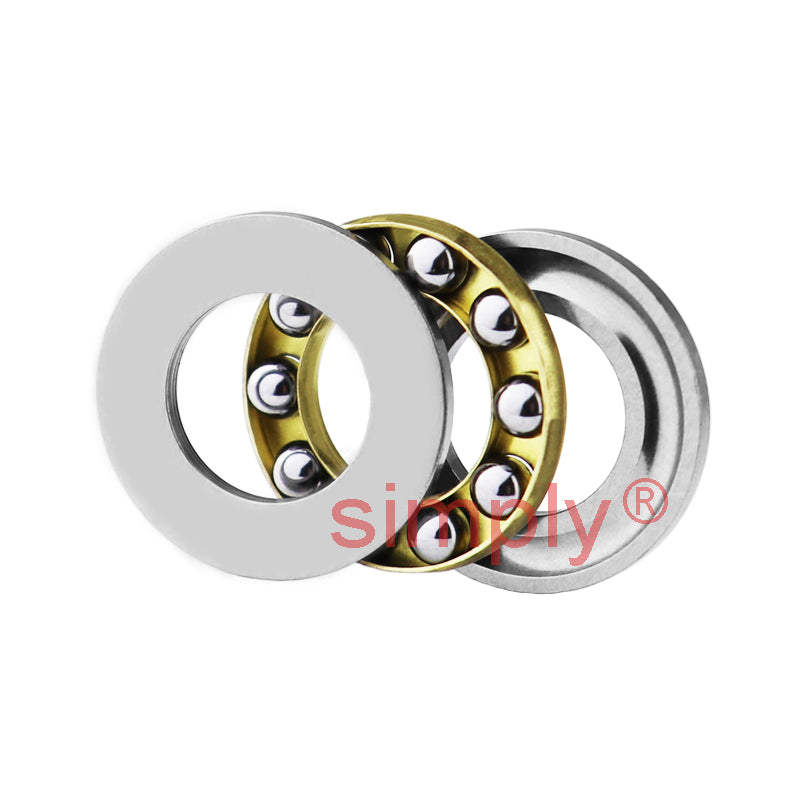

F9-17G Budget Single Thrust Ball Bearing with Grooved Washers 9x17x5mm
- Regular price
- €8.95 ex VAT
- Sale price
- €8,95
- Regular price
-
In stock
Quantity Price Breaks
10
€7.97
19
€7.52
29
€7.43
39
€7.34
49
€7.25
74
€7.16
99
€6.71
199
€6.62
249
€6.53
499
€6.44
999
€6.27
SKU:
F9-17G-EU
F9-17G Budget Single Thrust Ball Bearing with Grooved Washers 9x17x5mm
- Regular price
- €8.95 ex VAT
- Sale price
- €8,95
- Regular price
-
Description
Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have angular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
Technical
| d | = | 9mm (+/-0.008mm) |
| D | = | 17mm (+0/-0.011mm) |
| H | = | 5mm (+0/-0.075mm) |
| r1r2 min | = | 0.3mm |
| Dynamic load C | = | 0.56 kN |
| Static load Co | = | 0.49 kN |
| Weight | = | 0.005 kg |
| Limiting Speed | = | 22000 rpm |
| Lubrication | = | Light Oil AF2 |
| Material | = | Balls & |
| Washers, Chrome Steel, Brass or 304 Stainless Steel Cage | = | N/A |
