SKU: FBL-M16CG-MB

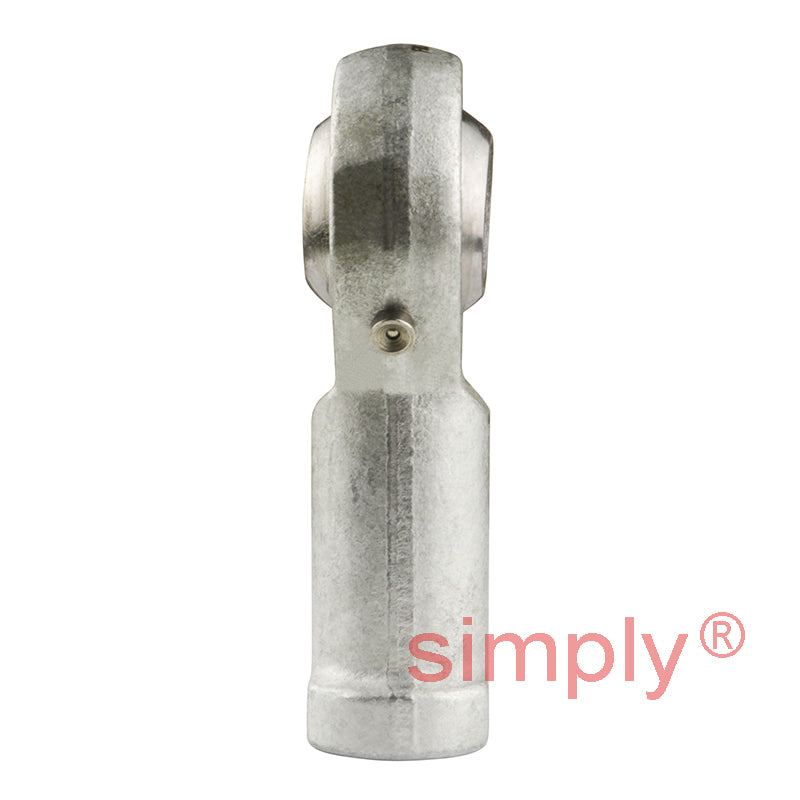

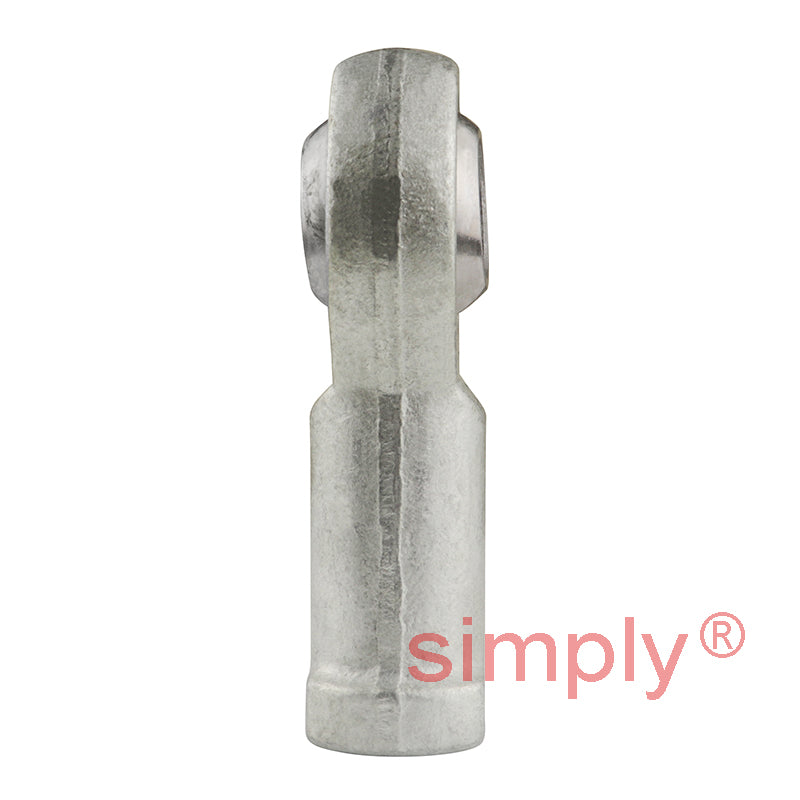

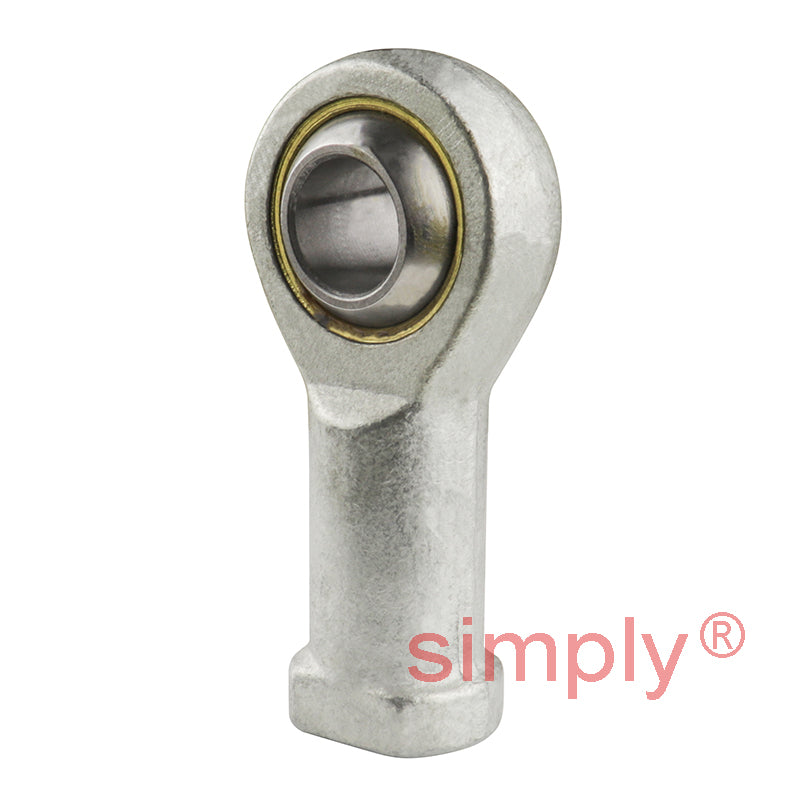

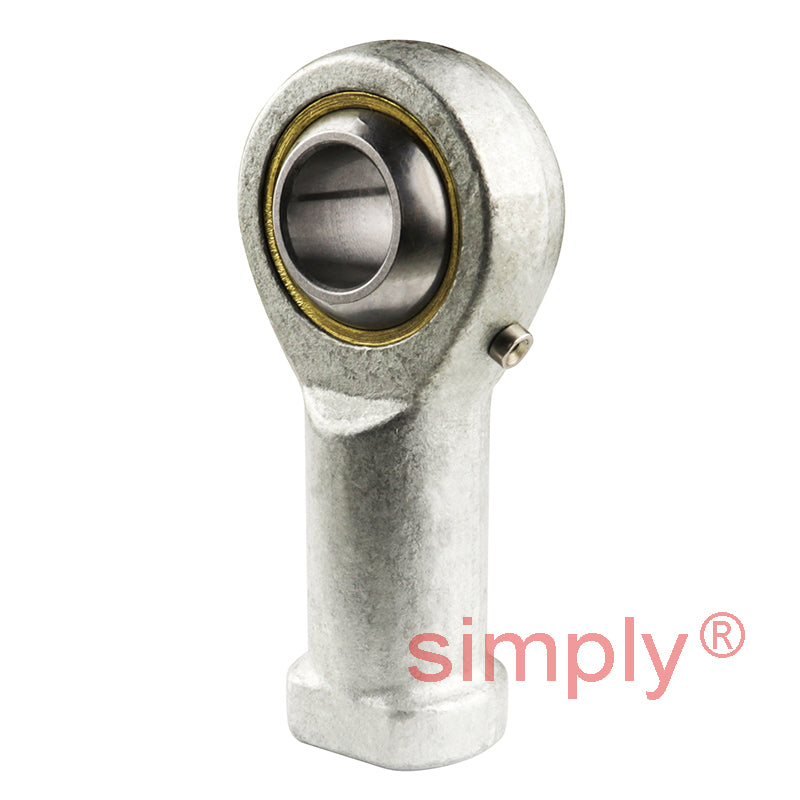

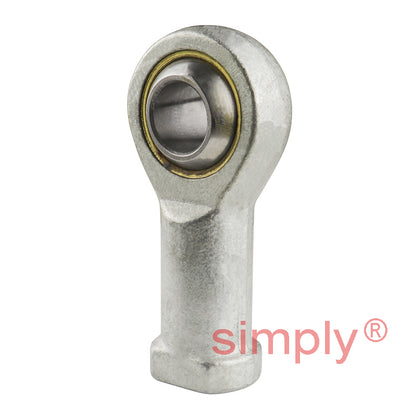

Branded FBL-16CG Left Hand Metric Steel / Bronze Lined Maintenance Required Plain Female Rod End M16x1.5 Thread - Allow 7-10 Days
- Regular price
- €20.53 ex VAT
- Sale price
- €20,53
- Regular price
-
In stock
Quantity Price Breaks
10
€18.27
19
€17.25
29
€17.04
39
€16.83
49
€16.63
74
€16.42
99
€15.40
199
€15.19
249
€14.99
499
€14.78
999
€14.37
SKU:
FBL-M16CG-MB
Branded FBL-16CG Left Hand Metric Steel / Bronze Lined Maintenance Required Plain Female Rod End M16x1.5 Thread - Allow 7-10 Days
- Regular price
- €20.53 ex VAT
- Sale price
- €20,53
- Regular price
-
Description
|
FB Series Maintenance Required Female Rod Ends: The FB series are a standard range of maintenance required general purpose female rod ends suitable for medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. Temperature range -34c to +149c Benefits: Low friction, extended wear life |
Technical
| Bore size | = | 16mm |
| Thread | = | M16x1.5 |
| W | = | 21mm |
| H | = | 15mm |
| D | = | 38mm |
| L1 | = | 64mm |
| L2 | = | 33mm |
| O | = | 19.3mm |
| AF | = | 22mm |
| Static load | = | 0.3713 N |
