SKU: FC1.1/2EC-RHP

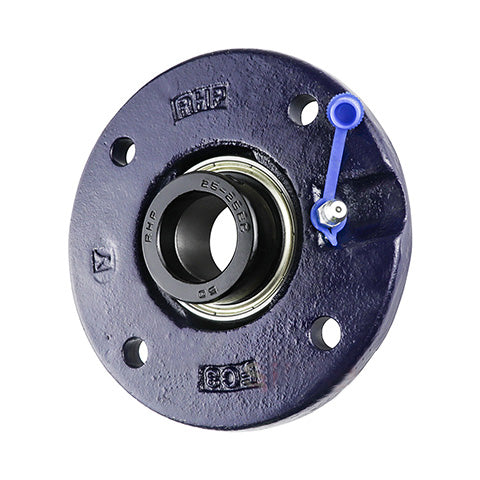

RHP FC1.1/2EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 1-1/2 inch Insert
- Regular price
- €90.44 ex VAT
- Sale price
- €90,44
- Regular price
-
Not in stock
Quantity Price Breaks
10
€80.49
20
€75.97
30
€75.07
40
€74.16
50
€73.26
75
€72.35
100
€67.83
200
€66.93
250
€66.02
500
€65.12
1000
€63.31
SKU:
FC1.1/2EC-RHP
RHP FC1.1/2EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 1-1/2 inch Insert
- Regular price
- €90.44 ex VAT
- Sale price
- €90,44
- Regular price
-
Description
|
RHP FC EC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
Technical
| Bore | = | 1-1/2 inch |
| L | = | 5.709 inch |
| H | = | 3.937 inch |
| J | = | 4.724 inch |
| G | = | 0.375 inch |
| A | = | 0.906 inch |
| A2 | = | 1.244 inch |
| A5 | = | 0.453 inch |
| B2 | = | 1.718 inch |
| s2 | = | 0.845 inch |
| d2 | = | 2.374 inch |
| Dynamic load | = | 32500 N |
| Static load | = | 19900 N |
| Rec max speed | = | 4000 rpm |
| Weight | = | 1.8 kg |
| Insert | = | < |
| a href=" | = | advanced_search_result.php?keywords=1240-1-1/2ECG+insonly" |
| > | = | 1240-1-1/2ECG Click Here< |
| /a> | = | |
| Casting group | = | 6 |
| Grease nipple thread | = | 1/4 UNF, 1/4 inch x 28 TPI |
