SKU: FC1.1/4-RHP

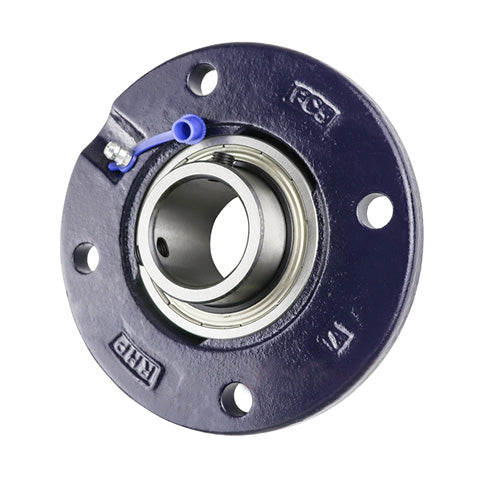

RHP FC1.1/4-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 1-1/4 inch Insert
- Regular price
- €73.75 ex VAT
- Sale price
- €73,75
- Regular price
-
Not in stock
Quantity Price Breaks
10
€65.64
20
€61.95
30
€61.21
40
€60.48
50
€59.74
75
€59.00
100
€55.31
200
€54.58
250
€53.84
500
€53.10
1000
€51.63
SKU:
FC1.1/4-RHP
RHP FC1.1/4-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 1-1/4 inch Insert
- Regular price
- €73.75 ex VAT
- Sale price
- €73,75
- Regular price
-
Description
|
RHP FC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
Technical
| Bore | = | 1-1/4 inch |
| L | = | 5.315 inch |
| H | = | 3.543 inch |
| J | = | 4.331 inch |
| G | = | 0.375 inch |
| A | = | 0.807 inch |
| A1 | = | 0.961 inch |
| A5 | = | 0.394 inch |
| B | = | 1.688 inch |
| s | = | 0.69 inch |
| d1 | = | 1.838 inch |
| Dynamic load | = | 25700 N |
| Static load | = | 15300 N |
| Rec max speed | = | 4500 rpm |
| Weight | = | 1.5 kg |
| Insert | = | < |
| a href=" | = | advanced_search_result.php?keywords=1035-1-1/4G+insonly" |
| > | = | 1035-1-1/4G Click Here< |
| /a> | = | |
| Casting group | = | 5 |
| Grease nipple thread | = | 1/4 UNF, 1/4 inch x 28 TPI |
