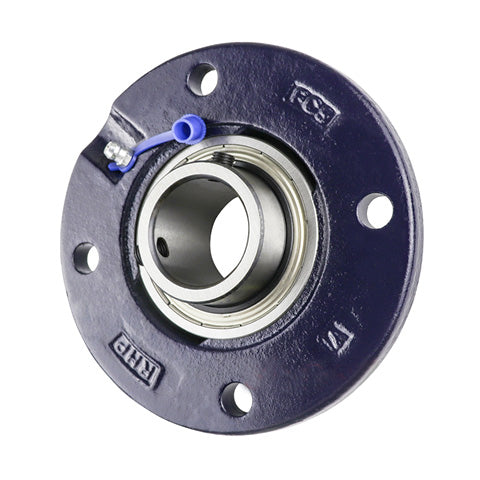

RHP FC1.15/16-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 1-15/16 Insert

SKU: FC1.15/16-RHP

RHP FC1.15/16-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 1-15/16 Insert

€135.10 ex VAT
€135,10
ex VAT
Not in stock

Quantity Price Breaks

10 €120.24
20 €113.48
30 €112.13
40 €110.78
50 €109.43
75 €108.08
100 €101.33
200 €99.97
250 €98.62
500 €97.27
1000 €94.57
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
RHP FC1.15/16-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 1-15/16 Insert
SKU: FC1.15/16-RHP

RHP FC1.15/16-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 1-15/16 Insert

€135.10 ex VAT
€135,10
ex VAT

Description

RHP FC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width bearing insert

Technical

Bore = 1-15/16 inch
L = 6.496 inch
H = 4.331 inch
J = 5.315 inch
G = 0.5 inch
A = 0.984 inch
A1 = 1.241 inch
A5 = 0.512 inch
B = 2.031 inch
s = 0.752 inch
d1 = 2.449 inch
Dynamic load = 35000 N
Static load = 23200 N
Rec max speed = 3400 rpm
Weight = 2.8 kg
Insert = <
a href=" = advanced_search_result.php?keywords=1050-1-15/16G+insonly"
> = 1050-1-15/16G Click Here<
/a> =
Casting group = 8
Grease nipple thread = 1/4 UNF, 1/4 inch x 28 TPI
