SKU: FC1.3/4EC-RHP

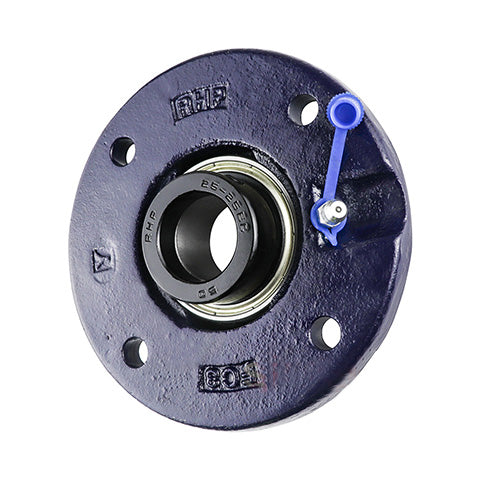

RHP FC1.3/4EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 1-3/4 inch Insert
- Regular price
- €107.36 ex VAT
- Sale price
- €107,36
- Regular price
-
Not in stock
Quantity Price Breaks
10
€95.55
20
€90.18
30
€89.11
40
€88.04
50
€86.96
75
€85.89
100
€80.52
200
€79.45
250
€78.37
500
€77.30
1000
€75.15
SKU:
FC1.3/4EC-RHP
RHP FC1.3/4EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 1-3/4 inch Insert
- Regular price
- €107.36 ex VAT
- Sale price
- €107,36
- Regular price
-
Description
|
RHP FC EC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
Technical
| Bore | = | 1-3/4 inch |
| L | = | 6.102 inch |
| H | = | 4.134 inch |
| J | = | 5.118 inch |
| G | = | 0.5 inch |
| A | = | 0.984 inch |
| A2 | = | 1.204 inch |
| A5 | = | 0.472 inch |
| B2 | = | 1.718 inch |
| s2 | = | 0.845 inch |
| d2 | = | 2.5 inch |
| Dynamic load | = | 32500 N |
| Static load | = | 20500 N |
| Rec max speed | = | 3400 rpm |
| Weight | = | 2.2 kg |
| Insert | = | < |
| a href=" | = | advanced_search_result.php?keywords=1250-1-3/4ECG+insonly" |
| > | = | 1250-1-3/4ECG Click Here< |
| /a> | = | |
| Casting group | = | 8 |
| Grease nipple thread | = | 1/4 UNF, 1/4 inch x 28 TPI |
