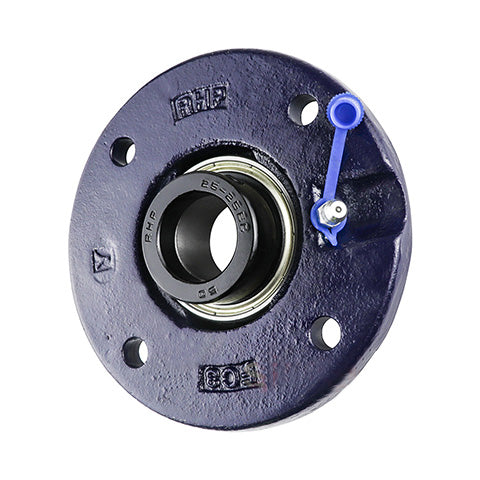

RHP FC1.7/16DEC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 1-7/16 inch Insert

SKU: FC1.7/16DEC-RHP

RHP FC1.7/16DEC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 1-7/16 inch Insert

€84.79 ex VAT
€84,79
ex VAT
Not in stock

Quantity Price Breaks

10 €75.46
20 €71.22
30 €70.38
40 €69.53
50 €68.68
75 €67.83
100 €63.59
200 €62.74
250 €61.90
500 €61.05
1000 €59.35
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
RHP FC1.7/16DEC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 1-7/16 inch Insert
SKU: FC1.7/16DEC-RHP

RHP FC1.7/16DEC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 1-7/16 inch Insert

€84.79 ex VAT
€84,79
ex VAT

Description

RHP FC DEC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, eccentric collar fixing, full width insert

Technical

Bore = 1-7/16 inch
L = 5.315 inch
H = 3.543 inch
J = 4.331 inch
G = 0.375 inch
A = 0.807 inch
A3 = 1.232 inch
A5 = 0.394 inch
B3 = 2.015 inch
s2 = 0.744 inch
d2 = 2.188 inch
Dynamic load = 25700 N
Static load = 15300 N
Rec max speed = 4500 rpm
Weight = 1.5 kg
Insert = <
a href=" = advanced_search_result.php?keywords=1035-1-7/16DECG+insonly"
> = 1035-1-7/16DECG Click Here<
/a> =
Casting group = 5
Grease nipple thread = 1/4 UNF, 1/4 inch x 28 TPI
