SKU: FC2-RHP

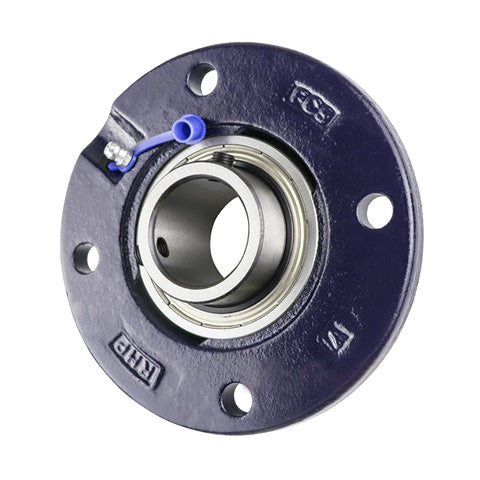

RHP FC2-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 2 inch Insert
- Regular price
- €135.10 ex VAT
- Sale price
- €135,10
- Regular price
-
Not in stock
Quantity Price Breaks
10
€120.24
20
€113.48
30
€112.13
40
€110.78
50
€109.43
75
€108.08
100
€101.33
200
€99.97
250
€98.62
500
€97.27
1000
€94.57
SKU:
FC2-RHP
RHP FC2-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 2 inch Insert
- Regular price
- €135.10 ex VAT
- Sale price
- €135,10
- Regular price
-
Description
|
RHP FC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
Technical
| Bore | = | 2 inch |
| L | = | 7.283 inch |
| H | = | 4.921 inch |
| J | = | 5.906 inch |
| G | = | 0.625 inch |
| A | = | 1.083 inch |
| A1 | = | 1.311 inch |
| A5 | = | 0.591 inch |
| B | = | 2.187 inch |
| s | = | 0.877 inch |
| d1 | = | 2.709 inch |
| Dynamic load | = | 43500 N |
| Static load | = | 29200 N |
| Rec max speed | = | 3100 rpm |
| Weight | = | 4 kg |
| Insert | = | < |
| a href=" | = | advanced_search_result.php?keywords=1055-2G+insonly" |
| > | = | 1055-2G Click Here< |
| /a> | = | |
| Casting group | = | 9 |
| Grease nipple thread | = | 1/4 UNF, 1/4 inch x 28 TPI |
